Key facts
- Brand
- DELL
- Model
- M610
- Category
- Servers Computer
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2026-10-15
Start here

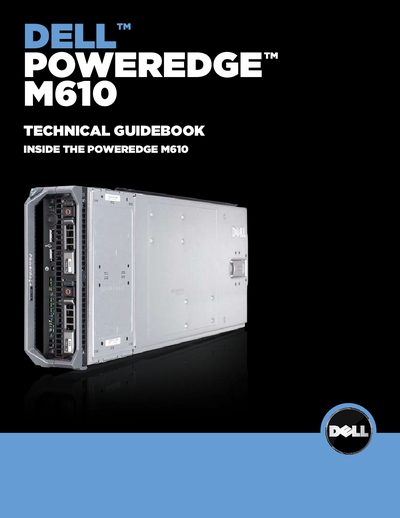

Dell PowerEdge M610 Technical Guidebook
User Manual 30 pages · 687 KB · EN
The Dell PowerEdge M610 is a next-generation Intel single-slot blade server designed to enhance performance with Nehalem EP processors and increased memory capacity. It features 2 x8 mezzanine slots, Broadcom 5709 NICs, and supports up to 96GB of RAM using DDR3 RDIMM or UDIMMs.
Read onlineDell M610 specifications
| Processor Series | Nehalem EP - 2-Socket Intel Xeon 5500 Series |
|---|---|
| Front Side Bus Speed | Intel Quickpath Interconnect (QPI) @ maximum of 6 GT/s |
| L2/L3 Cache Size | 4MB and 8MB |
| Chipset Model | Intel Tylersberg |
| Supported DIMMs | 12 DDR3 – RDIMM or UDIMM |
| Minimum/Maximum RAM | 1GB - 96GB |
| Hard Drive Bays | 2 (2.5" only) |
| Internal HD Controller | SATA |
| Video Memory | 8MB memory |
| Mezzanine Slots | 2 x8 (PCI 2.0) |
| NIC/LOM Model | Broadcom 5709 1Gb |
| Operating Temperature | 10° to 35°C (50° to 95°F) |
| Relative Humidity | 8% to 85% (noncondensing) |
All Dell M610 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What type of processors does the PowerEdge M610 support?
The server supports Nehalem EP - 2-Socket Intel Xeon 5500 Series processors.
What is the maximum RAM capacity for the M610?
The maximum memory capacity is 96GB using DDR3 RDIMM or UDIMMs.
