DELL 5100 MP Manuals

ManualLib has 9 documents for the DELL 5100 MP (Other): 9 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 9

Key facts

Brand
DELL
Model
5100 MP
Category
Other
Industry
Electronics
Documents
9
Languages
EN · ZH
Last added
2026-11-14

Start here

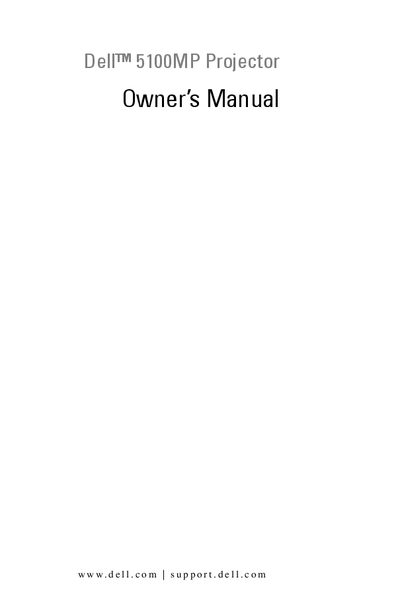

Dell 5100MP Projector Owner's Manual

Dell 5100MP Projector Owner's Manual

User Manual 426 pages · 4 MB · EN

The Dell 5100MP is a single-chip DLP™ projector featuring a 300-watt user-replaceable lamp with up to 2200 hours of life in eco mode. It supports various video formats including NTSC, PAL, and HDTV, delivering 3300 ANSI Lumens of brightness.

Read online

DELL 5100 MP specifications

Light valveSingle-chip 0.95-inch SXGA+ DLP LVDS technology
Brightness3300 ANSI lumens (maximum)
Contrast ratio2500:1 typical (full on/full off)
Uniformity80% typical (Japan Standard - JBMA)
Lamp300-watt user-replaceable 1700-hour lamp (up to 2200 hours in eco mode)
Number of pixels1400 x 1050 (SXGA+)
Displayable color16.7 million colors
Color wheel speed100-127.5 Hz (2X)
Projection lensF/2.6-2.87, f=39.1-46.92 mm with 1.2x manual zoom
Projection screen size30.8-295.3 inches (diagonal)
Projection distance4.9-39.4 ft (1.5-12 m)
Video compatibilityNTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV (1080i/p, 720p, 576i/p, 480i/p); composite, component, and S-video
Horizontal frequency15-100 kHz (analog), 30-64 kHz (digital)
Vertical frequency43-120 Hz (analog), 43-85 Hz (digital)
Power supplyUniversal 90-240 V AC, 50-60 Hz with PFC input
Power consumption400 watts typical, 335 watts in eco mode
Audio2 speakers, 2 watts RMS
Noise level37 dB(A) full-on mode, 31 dB(A) eco mode
Weight8.2 lbs (3.73 kg)
Dimensions (W x H x D)13 x 10.3 x 4.5 ±0.04 in (329.8 x 261.4 x 115.2 ±1 mm)
EnvironmentalOperating 5-35°C (41-95°F), 80% humidity maximum; storage -20 to 60°C (-4 to 140°F), 80% humidity maximum
RegulatoryFCC, CE, VCCI, UL, cUL, TÜV-GS, ICES-003, C-Tick, GOST, PCBC, CCC, PSB, EZU, NOM, S-TÜV/Argentina
Networking protocol10/100 Base-T TCP/IP, ICMP, ARP, SNMP v1.0, SMTP, DHCP, HTTP
I/O connectorsAC power input; M1-DA, 15-pin D-sub, and BNC RGB computer inputs; 15-pin D-sub output; 3 RCA component, S-video, and composite video; audio input/output; 12 V DC relay; RJ45; HDMI; mini-DIN RS232
RS232 connection settingsBaud rate 19200, 8 data bits, no parity, 1 stop bit

Source: Dell 5100MP Projector Owner's Manual

All DELL 5100 MP documents by type

Questions answered in these manuals

What is the maximum brightness of the Dell 5100MP projector?

The projector has a brightness of 3300 ANSI lumens maximum.

From: Dell 5100MP Projector Owner's Manual

What is the lamp life?

The 300-watt user-replaceable lamp is rated for 1700 hours, or up to 2200 hours in eco mode.

From: Dell 5100MP Projector Owner's Manual

What is the brightness of the Dell 5100MP projector?

3300 ANSI Lumens (Max.)

From: Dell 5100MP Projector User's Guide

What is the lamp life of the Dell 5100MP projector?

300-watt user-replaceable 1700-hour lamp (up to 2200 hours in eco mode)

From: Dell 5100MP Projector User's Guide

How do I connect the Dell 5100 MP projector to a computer?

Use the M1 to D/USB adapter cable or the D-type to D-type adapter cable.

From: Dell 5100 MP Projector User Manual

What is the maximum brightness of the projector?

The maximum brightness is 3300 ANSI lumens.

From: Dell 5100 MP Projector User Manual
