Start here

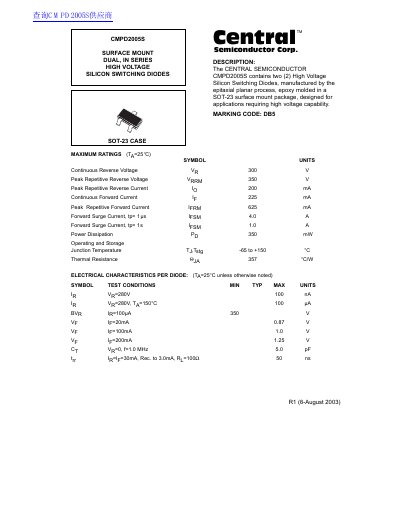

Central Semiconductor CMPD2005S Datasheet
The CMPD2005S is a dual, in series high voltage silicon switching diode manufactured by Central Semiconductor. It is designed for applications requiring high voltage capability and is packaged in a SOT-23 surface mount case.
The document provides maximum ratings, electrical characteristics per diode, and mechanical outline dimensions. Key specifications include a continuous reverse voltage of 300 V and a peak repetitive reverse voltage of 350 V.
Central Semiconductor CMPD200 specifications
| Continuous Reverse Voltage | 300 V |
|---|---|
| Peak Repetitive Reverse Voltage | 350 V |
| Continuous Forward Current | 225 mA |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Package Type | SOT-23 |
All Central Semiconductor CMPD200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the CMPD2005S?
It contains two high voltage silicon switching diodes manufactured in a SOT-23 surface mount package.
What is the maximum continuous reverse voltage?
The device has a maximum continuous reverse voltage rating of 300 V.
What is the maximum power dissipation for these diodes?
The maximum power dissipation is 350 mW.
From: Central CMPD2003 CMPD2003C CMPD2003S CMPD2004 CMPD2004C CMPD2004S handbook
What is the operating and storage junction temperature range?
The operating and storage junction temperature range is -65 to +150 °C.
From: Central CMPD2003 CMPD2003C CMPD2003S CMPD2004 CMPD2004C CMPD2004S handbook
What is the maximum continuous reverse voltage for the CMPD2004?
The maximum continuous reverse voltage is 200 V.
From: Central Semiconductor Corp. CMPD2003/CMPD2004/CMPD2004S High Voltage Switching Diode Datasheet
What is the maximum power dissipation for these diodes?
The maximum power dissipation is 350 mW.
From: Central Semiconductor Corp. CMPD2003/CMPD2004/CMPD2004S High Voltage Switching Diode Datasheet
