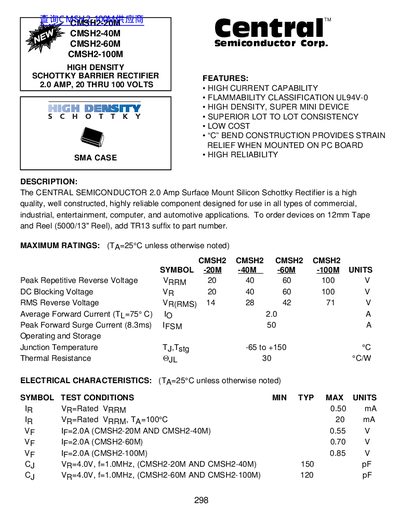

Central CMSH2-20M CMSH2-40M CMSH2-60M CMSH2-100M HIGH DENSITY SCHOTTKY BARRIER RECTIFIER 2.0 AMP 20 THRU 100 VOLTS handbook
Datasheet 2 pages · 132 KB · EN
This document provides technical specifications and features for the Central Semiconductor Corp. CMSH2-20M, CMSH2-40M, CMSH2-60M, and CMSH2-100M High Density Schottky Barrier Rectifiers. These surface mount silicon devices are designed for use in commercial, industrial, entertainment, computer, and automotive applications.
Read onlineCentral Semiconductor CMSH2-100 specifications
| Peak Forward Surge Current (8.3ms) | 50 A |
|---|---|
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance QJL | 30 °C/W |
All Central Semiconductor CMSH2-100 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flammability classification of this rectifier?
The device has a Flammability Classification of UL94V-0.
What is the construction type for strain relief?
It uses 'C' bend construction to provide strain relief when mounted on a PC board.
What is the maximum average forward current rating for these rectifiers?
The device has a maximum average forward current of 2.0 A when the ambient temperature is 55°C.
What are the operating and storage junction temperatures?
The component operates and stores within a temperature range of -65 to +150 °C.
