Start here

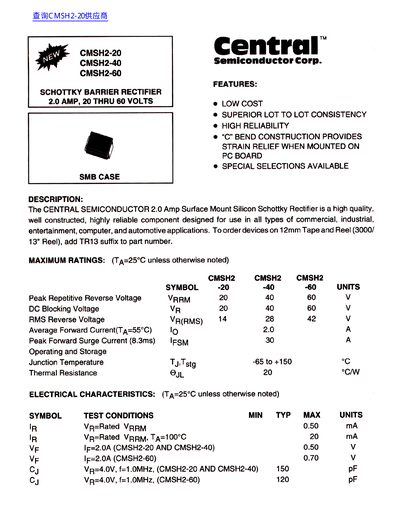

Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
This document is a datasheet for the Central Semiconductor Corp. CMSH2 series of 2.0 Amp Surface Mount Silicon Schottky Rectifiers. These components are designed in an SMB case with 'C' bend construction to provide strain relief when mounted on PC boards.
The rectifiers feature low cost, superior lot-to-lot consistency, and high reliability, making them suitable for commercial, industrial, entertainment, computer, and automotive applications. The document provides maximum ratings, electrical characteristics, and mechanical dimensions.
Central Semiconductor CMSH2-60 specifications
| Peak Forward Surge Current (IFSM) | 30 A |
|---|---|
| Operating and Storage Temperature Range | -65 to +150 °C |
| Thermal Resistance (OIL) | 20 °C/W |
Source: Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
All Central Semiconductor CMSH2-60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet 2 p
- Central CMSH2-20M CMSH2-40M CMSH2-60M CMSH2-100M HIGH DENSITY SCHOTTKY BARRIER RECTIFIER 2.0 AMP 20 THRU 100 VOLTS handbook 2 p
- Central CMSH2-20 CMSH2-40 CMSH2-60 CMSH2-100 SCHOTTKY BARRIER RECTIFIER 2.0 AMP 20 THRU 100 VOLTS handbook 2 p
Questions answered in these manuals
What is the package type for these rectifiers?
The devices are available in an SMB case.
From: Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
How do I order devices on 12mm Tape and Reel?
Add the TR13 suffix to the part number to order devices on 12mm Tape and Reel.
From: Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
What is the flammability classification of this rectifier?
The device has a Flammability Classification of UL94V-0.
What is the construction type for strain relief?
It uses 'C' bend construction to provide strain relief when mounted on a PC board.
What is the maximum average forward current rating for these rectifiers?
The device has a maximum average forward current of 2.0 A when the ambient temperature is 55°C.
What are the operating and storage junction temperatures?
The component operates and stores within a temperature range of -65 to +150 °C.
