Start here

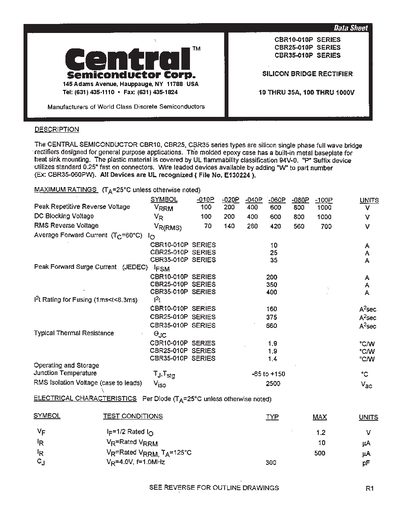

Central Semiconductor CBR10-010P Series Data Sheet
The CBR10‑010P, CBR25‑010P and CBR35‑010P series are silicon single‑phase full‑wave bridge rectifiers offered by Central Semiconductor. They are supplied in molded epoxy cases with a metal baseplate for heat‑sink mounting and are UL‑recognized.
The sheet lists maximum voltage and current ratings, thermal resistance, junction temperature limits, isolation voltage, and provides a mechanical outline of the case dimensions and mounting hole locations.
Central Semiconductor CBR1 specifications
| Peak Repetitive Reverse Voltage (VRRM) | 100‑1000 V |
|---|---|
| DC Blocking Voltage (VR) | 100‑1000 V |
| RMS Reverse Voltage (VR RMS) | 70‑700 V |
| Average Forward Current (Io) | 10‑35 A |
| Peak Forward Surge Current (Irs) | 200‑400 A |
| Fusing Rating (It, 1 ms‑8.3 ms) | 160‑660 A·sec |
All Central Semiconductor CBR1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum forward current rating for the CBR25-010P series?
The CBR25-010P series is rated for an average forward current of 25 A.
What is the typical thermal resistance of the CBR35-010P series?
The CBR35-010P series has a typical thermal resistance of 1.4 °C/W.
What is the maximum reverse voltage rating for the CBR1-D010 series?
The series is available with peak repetitive reverse voltages ranging from 100 V to 1000 V depending on the part number.
What is the average forward current rating at 50 °C?
The average forward current is rated at 1.0 A when the junction temperature is 50 °C.
What is the average forward current rating for the CBR1 rectifier?
The CBR1 rectifier is rated for an average forward current of 1.5 A.
From: Central Semiconductor CBR1/CBR2 Silicon Bridge Rectifier Data Sheet
What is the operating temperature range of these bridge rectifiers?
They are specified for junction temperatures from –65 °C to +150 °C.
From: Central Semiconductor CBR1/CBR2 Silicon Bridge Rectifier Data Sheet
