Central Semiconductor CMR1-04 Manuals

Key facts

Brand: Central Semiconductor
Model: CMR1-04
Category: RECTIFIER
Documents: 2
Languages: EN
Last added: 2012-07-09

Start here

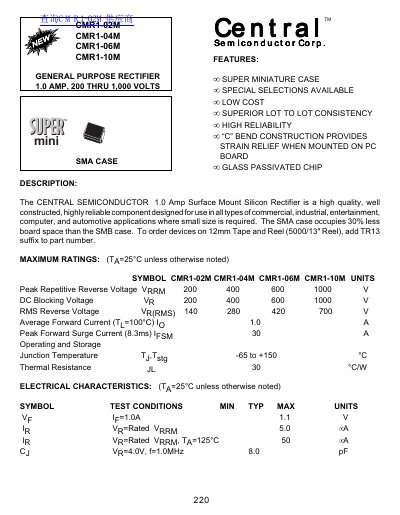

Central CMR1-02M CMR1-04M CMR1-06M CMR1-10M handbook

Datasheet 2 pages · 83 KB · EN

This document is a datasheet for the Central Semiconductor CMR1 series of general purpose silicon rectifiers. The components are available in models with peak repetitive reverse voltages ranging from 400V to 1000V and an average forward current of 1.0 Amp.

Read online

Central Semiconductor CMR1-04 specifications

Average Forward Current (TA=75°C)	1.0 A
Peak Repetitive Reverse Voltage	200 to 1000 V
Junction Temperature Range	-65 to +175 °C
Thermal Resistance @jL	20 °C/W

Source: Central CMR1-02 CMR1-04 CMR1-06 CMR1-10 handbook

All Central Semiconductor CMR1-04 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the case style for these rectifiers?

The components are housed in a Super Miniature (SMA) case.

From: Central CMR1-02M CMR1-04M CMR1-06M CMR1-10M handbook

Are special selections available?

Yes, the manufacturer states that special selections are available for these devices.

From: Central CMR1-02M CMR1-04M CMR1-06M CMR1-10M handbook

What is the package type for these rectifiers?

The devices are designed as Surface Mount Silicon Rectifiers.

From: Central CMR1-02 CMR1-04 CMR1-06 CMR1-10 handbook

How do I order the tape and reel version?

Add the TR13 suffix to the part number for 12mm Tape and Reel.
