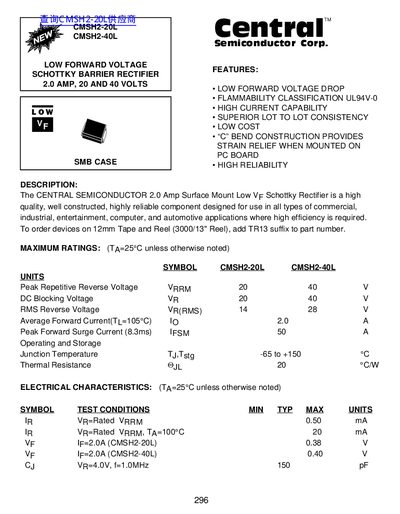

Central Semiconductor CMSH2-20L/CMSH2-40L Schottky Barrier Rectifier Datasheet
This document is a technical datasheet for the Central Semiconductor CMSH2-20L and CMSH2-40L Schottky Barrier Rectifiers. These components are surface-mount devices designed with a 'C' bend construction to provide strain relief when mounted on PC boards.
The rectifiers feature low forward voltage drop, high current capability, and superior lot-to-lot consistency. They are rated for 2.0 Amps average forward current and come in SMB case packages with UL94V-0 flammability classification.
Central Semiconductor CMSH2-20 specifications
| Peak Repetitive Reverse Voltage (CMSH2-20L) | 20 V |
|---|---|
| DC Blocking Voltage (CMSH2-40L) | 40 V |
| Average Forward Current | 2.0 A |
| Peak Forward Surge Current (8.3ms) | 50 A |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Thermal Resistance (OJL) | 20 °C/W |
Source: Central Semiconductor CMSH2-20L/CMSH2-40L Schottky Barrier Rectifier Datasheet
All Central Semiconductor CMSH2-20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Central Semiconductor CMSH2-20L/CMSH2-40L Schottky Barrier Rectifier Datasheet 2 p
- Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet 2 p
- Central CMSH2-20M CMSH2-40M CMSH2-60M CMSH2-100M HIGH DENSITY SCHOTTKY BARRIER RECTIFIER 2.0 AMP 20 THRU 100 VOLTS handbook 2 p
- Central CMSH2-20 CMSH2-40 CMSH2-60 CMSH2-100 SCHOTTKY BARRIER RECTIFIER 2.0 AMP 20 THRU 100 VOLTS handbook 2 p
Questions answered in these manuals
What is the marking code for the CMSH2-40L device?
The marking code for the CMSH2-40L device is CS240L.
From: Central Semiconductor CMSH2-20L/CMSH2-40L Schottky Barrier Rectifier Datasheet
What is the typical forward voltage drop at 2.0A?
The typical forward voltage drop for CMSH2-40L at 2.0A is 0.40 V.
From: Central Semiconductor CMSH2-20L/CMSH2-40L Schottky Barrier Rectifier Datasheet
What is the package type for these rectifiers?
The devices are available in an SMB case.
From: Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
How do I order devices on 12mm Tape and Reel?
Add the TR13 suffix to the part number to order devices on 12mm Tape and Reel.
From: Central Semiconductor CMSH2 Series Schottky Barrier Rectifier Datasheet
What is the flammability classification of this rectifier?
The device has a Flammability Classification of UL94V-0.
What is the construction type for strain relief?
It uses 'C' bend construction to provide strain relief when mounted on a PC board.
