Start here

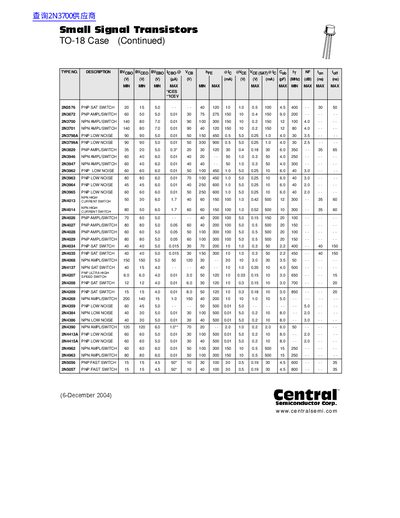

Central Semiconductor TO-18 Case Small Signal Transistors Datasheet
This document is a technical datasheet from Central Semiconductor covering various models of small signal transistors housed in the TO-18 package. It provides detailed electrical parameters including collector-emitter voltage, current gain, transition frequency, and capacitance for specific part numbers such as the 2N3700 series.
Read onlineAll Central Semiconductor TO-18 Case documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for these transistors?
These small signal transistors are housed in a TO-18 case.
From: Central Semiconductor TO-18 Case Small Signal Transistors Datasheet
What is the maximum collector‑emitter voltage (VCE) for the 2N703 transistor?
The 2N703 transistor has a maximum VCE of 40 V.
From: Central Semiconductor TO-18 Case Small Signal Transistors Data Sheet
What is the maximum collector current (IC) for the 2N708 transistor?
The 2N708 transistor can handle up to 120 mA of collector current.
From: Central Semiconductor TO-18 Case Small Signal Transistors Data Sheet
