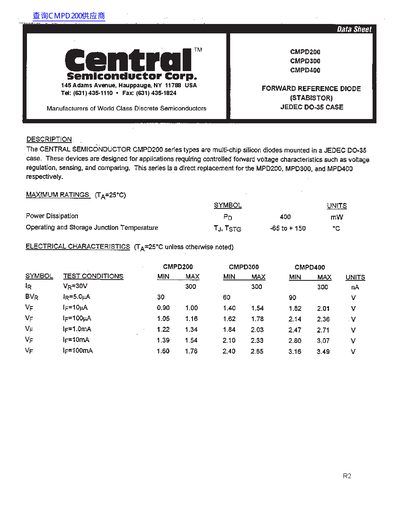

This document is a data sheet for the Central Semiconductor CMPD200 series types, which are multi-chip silicon diodes mounted in a JEDEC DO-35 case. These devices are designed for applications requiring controlled forward voltage characteristics such as voltage regulation, sensing, and comparing.
The datasheet provides maximum ratings including power dissipation of 400 mW and operating temperatures from -65 to +150 °C. It also lists detailed electrical characteristics for the CMPD200, CMPD300, and CMPD400 models under various test conditions.
| Power Dissipation | 400 mW |
|---|---|
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Case Style | JEDEC DO-35 CASE |
These devices are designed for applications requiring controlled forward voltage characteristics such as voltage regulation, sensing, and comparing.
The maximum power dissipation is 400 mW at a temperature of 25°C.
The operating and storage junction temperature ranges from -65 to +150 °C.
