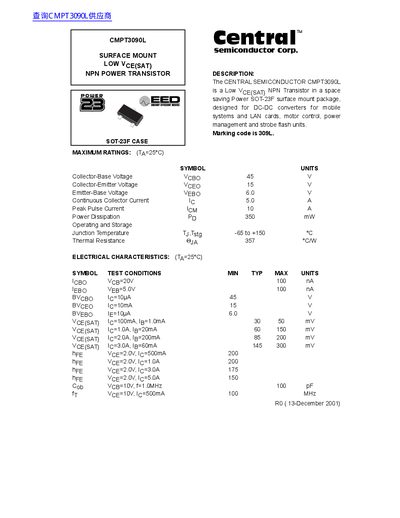

Central Semiconductor CMPT3090L NPN Power Transistor Datasheet
The Central Semiconductor CMPT3090L is a low VCE(SAT) NPN power transistor designed for use in DC-DC converters for mobile systems and LAN cards, motor control, power management, and strobe flash units. It is housed in a space-saving SOT-23F surface mount package with a marking code of 309L.
The document provides maximum ratings, electrical characteristics, and mechanical outline dimensions for the device. Key specifications include a collector-emitter voltage of 15V, a continuous collector current of 5.0A, and a power dissipation of 350mW.
Central Semiconductor CMPT3090L specifications
| Operating and Storage Junction Temperature (Tj, Tstg) | -65 to +150 °C |
|---|---|
| Thermal Resistance (θJA) | 357 °C/W |
| Package Type | SOT-23F |
Source: Central Semiconductor CMPT3090L NPN Power Transistor Datasheet
All Central Semiconductor CMPT3090L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the marking code for this transistor?
The marking code is 309L.
What package type does the CMPT3090L use?
It uses a space-saving Power SOT-23F surface mount package.
