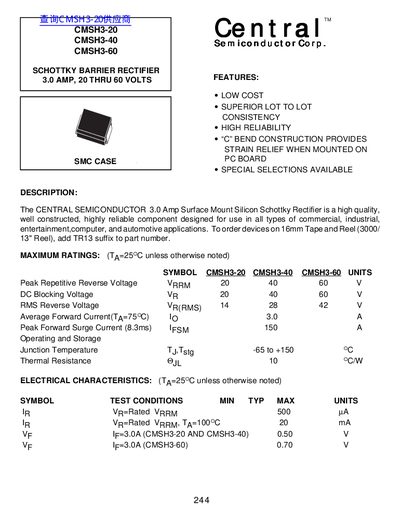

Central CMSH3-20 CMSH3-40 CMSH3-60 SCHOTTKY BARRIER RECTIFIER 3.0 AMP 20 THRU 60 VOLTS handbook
This document is a datasheet for the Central Semiconductor Corp. CMSH3 series of 3.0 Amp Surface Mount Silicon Schottky Rectifiers. The components are available in SMC case construction and feature low cost, superior lot-to-lot consistency, and high reliability with strain relief via 'C' bend construction.
Read onlineCentral Semiconductor CMSH3-20 specifications
| Average Forward Current (Ta=75°C) | 3.0 A |
|---|---|
| Peak Forward Surge Current (8.3ms) | 150 A |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 10 oC/W |
Source: Central CMSH3-20 CMSH3-40 CMSH3-60 SCHOTTKY BARRIER RECTIFIER 3.0 AMP 20 THRU 60 VOLTS handbook
All Central Semiconductor CMSH3-20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum average forward current?
The maximum average forward current at Ta=75°C is 3.0 A.
From: Central CMSH3-20 CMSH3-40 CMSH3-60 SCHOTTKY BARRIER RECTIFIER 3.0 AMP 20 THRU 60 VOLTS handbook
What are the peak forward surge currents?
The peak forward surge current for an 8.3ms duration is 150 A.
From: Central CMSH3-20 CMSH3-40 CMSH3-60 SCHOTTKY BARRIER RECTIFIER 3.0 AMP 20 THRU 60 VOLTS handbook
What are the available voltage ratings for the CMSH3 series?
The available peak repetitive reverse voltages are 20, 40, 60, and 100 volts.
From: Central CMSH3-20M CMSH3-40M CMSH3-60M CMSH3-100M handbook
What is the forward voltage drop for the CMSH3-100M model?
The typical forward voltage drop (VF) at IF=3.0A for the CMSH3-100M is 0.85 V.
From: Central CMSH3-20M CMSH3-40M CMSH3-60M CMSH3-100M handbook
