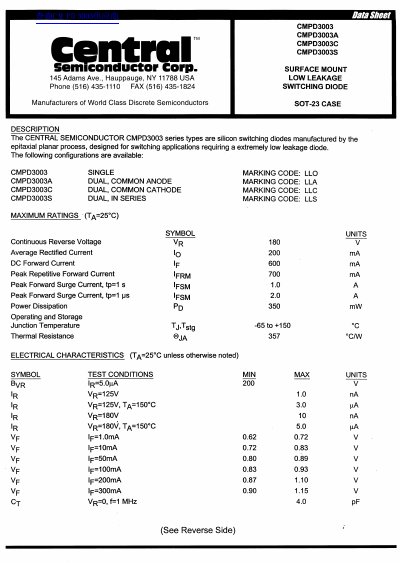

Central CMPD3003/CMPD3003A/CMPD3003C/CMPD3003S handbook
The document describes the Central Semiconductor CMPD3003 series types as silicon switching diodes manufactured by the epitaxial planar process. These devices are designed for switching applications requiring extremely low leakage current.
Available configurations include single (CMPD3003), dual common anode (CMPD3003A), dual common cathode (CMPD3003C), and dual in series (CMPD3003S) variants. The datasheet provides maximum ratings, electrical characteristics, and a mechanical outline for the SOT-23 case.
Central Semiconductor CMPD300 specifications
| Continuous Reverse Voltage (VR) | 180 V |
|---|---|
| Average Rectified Current (Io) | 200 mA |
| DC Forward Current (Ip) | 600 mA |
| Peak Repetitive Forward Current (IFRM) | 700 mA |
| Power Dissipation (Pp) | 350 mW |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
Source: Central CMPD3003/CMPD3003A/CMPD3003C/CMPD3003S handbook
All Central Semiconductor CMPD300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the marking codes for the CMPD3003 series?
CMPD3003 is marked LLO, CMPD3003A is LLA, CMPD3003C is LLC, and CMPD3003S is LLS.
From: Central CMPD3003/CMPD3003A/CMPD3003C/CMPD3003S handbook
What is the maximum reverse leakage current at 125V?
The maximum reverse leakage current (Ir) is 4.0 nA when VR=125V.
From: Central CMPD3003/CMPD3003A/CMPD3003C/CMPD3003S handbook
What are the CMPD200 series diodes designed for?
These devices are designed for applications requiring controlled forward voltage characteristics such as voltage regulation, sensing, and comparing.
What is the maximum power dissipation rating?
The maximum power dissipation is 400 mW at a temperature of 25°C.
