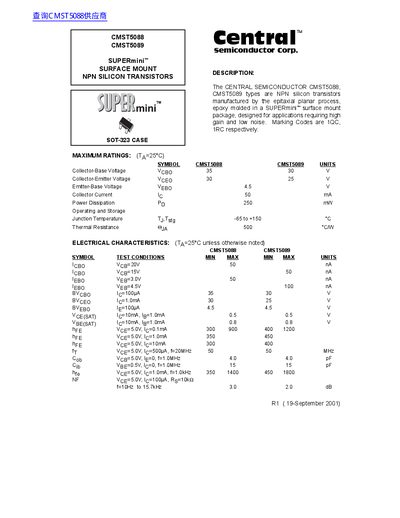

Central SOT-323 CASE Manual(2)
The document describes the CENTRAL SEMICONDUCTOR CMST5088 and CMST5089 types as NPN silicon transistors manufactured by the epitaxial planar process. These devices are epoxy molded in a SUPERmini surface mount package, specifically designed for applications requiring high gain and low noise.
The datasheet details maximum ratings such as collector-base voltage (35V/30V) and power dissipation (250mW), along with electrical characteristics including current gain (hFE) and cutoff frequencies. It also includes a mechanical outline showing the lead code for the SOT-323 case.
Central Semiconductor SOT-323 specifications
| Collector-Base Voltage (VCBO) | 35 V (CMST5088), 30 V (CMST5089) |
|---|---|
| Collector-Emitter Voltage (VCEO) | 30 V (CMST5088), 25 V (CMST5089) |
| Emitter-Base Voltage (VEBO) | 4.5 V |
| Collector Current (IC) | 50 mA |
| Power Dissipation (PD) | 250 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
