Central CMPD2003 CMPD2003C CMPD2003S CMPD2004 CMPD2004C CMPD2004S handbook

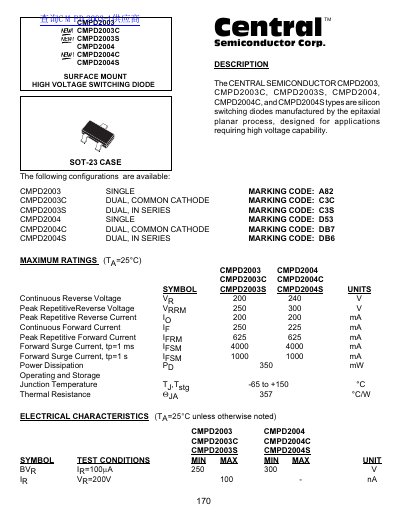

This document is a datasheet for the Central Semiconductor Corp. CMPD2003, CMPD2003C, CMPD2003S, CMPD2004, CMPD2004C, and CMPD2004S series of silicon switching diodes. These components are manufactured using an epitaxial planar process and are designed for applications requiring high voltage capability.
Read onlineCentral Semiconductor CMPD2003 specifications
| Continuous Reverse Voltage (VR) | 200 V / 240 V |
|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 250 V / 300 V |
| Continuous Forward Current (IF) | 250 mA / 225 mA |
| Power Dissipation (Pp) | 350 mW |
| Operating and Storage Junction Temperature (Tj, Tstg) | -65 to +150 °C |
| Thermal Resistance (QJA) | 357 °C/W |
