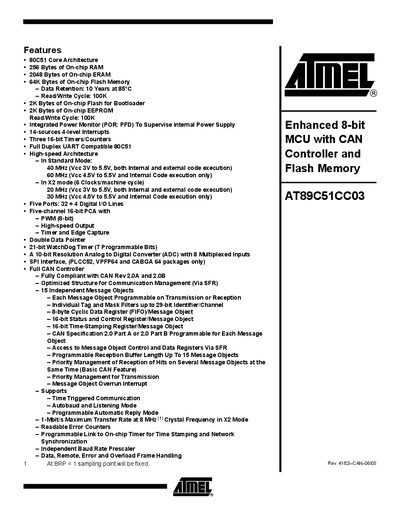

Atmel AT89C51CC03 Datasheet
The AT89C51CC03 is an 8‑bit microcontroller designed for CAN network applications. It offers 64 KB Flash, 256 B RAM, 2 KB ERAM, 2 KB EEPROM, a 10‑bit ADC with eight multiplexed inputs, three 16‑bit timers/counters, and a full CAN controller supporting up to 15 message objects.
The device is supplied in VQFP44, PLCC44, VQFP64, PLCC52 and CA‑BGA64 packages and operates from 3 V to 5.5 V. Detailed pin‑out tables describe the functions of ports 0‑4, including CAN TX/RX pins, SPI, UART and analog inputs. Electrical characteristics such as data retention (10 years at 85 °C) and read/write cycles (100 k) are also listed.
Atmel AT89C51CC03 specifications
| On‑chip RAM | 256 Bytes |
|---|---|
| On‑chip ERAM | 2048 Bytes |
| Flash Memory | 64 KB |
| CAN Controller | Full CAN controller, 15 message objects |
| Timers/Counters | Three 16‑bit timers/counters |
| Supply Voltage | 3 V to 5.5 V |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
| Package Types | VQFP44, PLCC44, VQFP64, PLCC52, CA‑BGA64 |
Source: Atmel AT89C51CC03 Datasheet
All Atmel AT89C51CC03 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the AT89C51CC03?
The device operates from 3 V to 5.5 V.
Which packages are available for the AT89C51CC03?
It is offered in VQFP44, PLCC44, VQFP64, PLCC52, and CA‑BGA64 packages.
What is the operating voltage range of the AT89C51CC03?
The device operates from 3 V to 5.5 V.
What is the maximum CAN bus speed supported?
It supports up to 1 Mbit/s CAN transfer rate.
