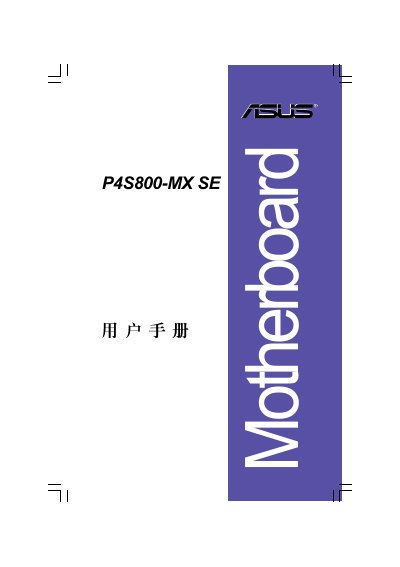

ASUS P4S800-MX SE Motherboard User Manual
This manual covers the essential safety precautions, hardware layout, and installation procedures for the ASUS P4S800-MX SE motherboard. It explains how to handle the board safely, connect power, and install components such as CPU, memory, and expansion cards.
The document also details BIOS configuration options, RAID setup, and provides a complete list of supported hardware features, including CPU types, memory specifications, audio, networking, and storage interfaces. This manual is written in Chinese.
ASUS P4S800-MX specifications
| Chipset | SiS661 FX, SiS963L |
|---|---|
| Front Side Bus (FSB) | 800/533/400 MHz |
| Memory slots | 2 × 184‑pin DDR DIMM sockets, up to 2 GB |
| Supported memory types | PC3200/2700/2100 unbuffered non‑ECC DDR DIMMs |
| Expansion slots | 1 × AGP 8X/4X (1.5 V), 3 × PCI |
| Integrated graphics | SiS Real256E |
| Storage interfaces | 2 × UltraATA133, PIO Mode 0‑4 |
| Audio codec | ADI AD1888 6‑channel audio CODEC |
| LAN controller | VIA 6103L 10/100 LAN PHY |
| USB ports | 4 × USB 2.0/1.1 ports + 1 × USB 2.0 connector for two additional ports |
| Form factor | Micro‑ATX (9.6 in × 9.6 in) |
| BIOS flash memory | 2 Mb Flash EEPROM |
All ASUS P4S800-MX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which CPU socket does the P4S800-MX use?
The board uses a Socket 478 for Intel® Pentium® 4 Northwood/Willamette processors.
How can I update the BIOS on the P4S800-MX motherboard?
Use the ASUS Live Update utility to download the latest BIOS from ASUS’s website and install it.
