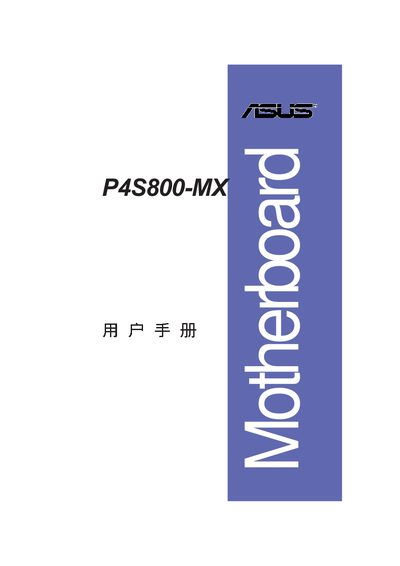

This document is a manual for the P4S800-MX motherboard, providing information on the layout and connections of the motherboard.
This manual introduces the ASUS P4S800-MX motherboard, its hardware layout, and the steps required to install the CPU, memory, and expansion cards. It also explains the BIOS configuration menus, power‑up procedures, and system monitoring features.
Additional sections cover safety precautions, driver installation, software utilities, and how to update the BIOS using ASUS Live Update. The document ends with contact information for ASUS support. This manual is written in Chinese.
| CPU Compatibility | Northwood/Wil1lanette processors |
|---|---|
| Northbridge Chip | SiS 6610X |
| Memory Type | DDR SDRAM, up to 2 GB |
| AGP Slot | 1.5× AGP slot |
| USB Ports | Four USB 2.0/1.1 ports |
| Network Port | RJ‑45 Ethernet port |
| Audio Codec | AD1888 |
Use the ASUS Live Update utility to download the latest BIOS from ASUS’s website and install it.
