Start here

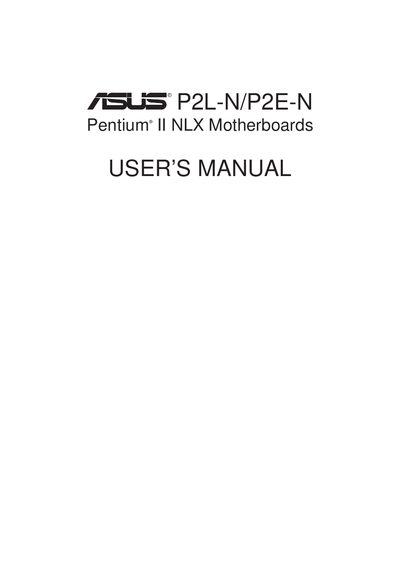

ASUS P2L-N/PE2-N Manual
This manual covers the ASUS P2L-N/P2E-N NLX motherboard, describing its features, supported processors, memory options, and onboard components. It includes step‑by‑step installation instructions, jumper settings, and BIOS configuration guidance.
Additional sections explain the support CD utilities, power‑management setup, and optional LAN card with Wake‑On‑LAN functionality, helping users configure and maintain the system.
ASUS P2L-N specifications
| Form factor | NLX (custom designed) |
|---|---|
| Supported CPUs | Intel Pentium® II (233‑333 MHz) and Celeron™ (266 MHz and faster) |
| AGPset | Intel 440LX or 440EX |
| Onboard VGA | ATI 3D Rage Pro AGP 2X, 2‑8 MB memory |
| Audio | ESS 16‑bit audio codec |
| Riser card I/O | 2 PCI, 1 ISA, 2 USB, IDE, floppy, LAN‑wake, IrDA |
| Optional TV out | ImpacT V2 chipset |
| ECC support | Error Checking and Correction via 440LX chipset |
Source: ASUS P2L-N/PE2-N Manual
All ASUS P2L-N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which CPUs can be used with the P2L‑N/P2E‑N motherboard?
It supports Intel Pentium® II processors from 233 MHz to 333 MHz and Celeron™ processors 266 MHz and faster.
From: ASUS P2L-N/PE2-N Manual
What is Wake‑On‑LAN?
The Wake‑On‑LAN feature provides the capability to remotely power on systems supporting Wake‑On‑LAN by simply sending a wake‑up frame.
What can Wake‑On‑LAN do for you?
Wake‑On‑LAN is a remote management tool that reduces system‑management workload, adds flexibility for administrators, and saves time‑consuming effort and costs.
