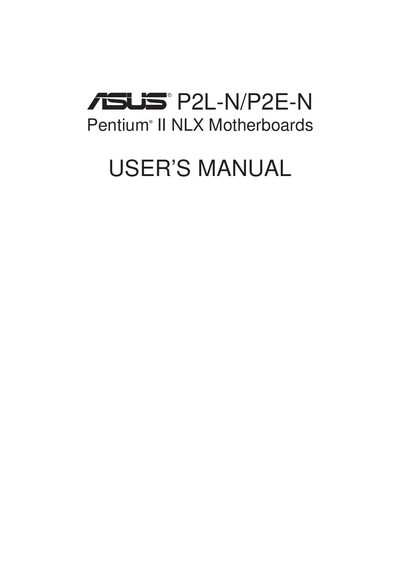

This document is the user manual for ASUS P2L-N/P2E-N Pentium ® II NLX Motherboards. The document describes the features and characteristics of the product.
This manual covers the ASUS P2L-N/P2E-N NLX motherboard, describing its hardware features, installation steps, BIOS configuration, and support software. It also includes a support CD with utilities such as the PC Probe and LAN card drivers.
The document provides safety notices, a checklist of package contents, detailed wiring diagrams, and a Q&A section for Wake‑On‑LAN functionality, helping users set up and maintain the system.
| Form factor | NLX custom design |
|---|---|
| Supported CPUs | Intel Pentium® IT (233‑333 MHz) and Celeron™ (266 MHz+) |
| AGP set | Intel 440LX or 440EX |
| Onboard graphics | ATI 3D Rage Pro AGP 2X VGA (2‑8 MB memory) |
| Onboard audio | ESS 16‑bit audio codec |
| Riser card I/O | Power, primary IDE, floppy, LAN‑wake, 2 PCI, 1 ISA, 2 USB, IrDA |
| IDE controller | PCI Bus Master IDE, Ultra DMA/33, supports up to 4 devices |
| Infrared port | Onboard IrDA on riser card |
The Wake‑On‑LAN feature provides the capability to remotely power on systems supporting Wake‑On‑LAN by simply sending a wake‑up frame.
Wake‑On‑LAN is a remote management tool that reduces system‑management workload, adds flexibility for administrators, and saves time‑consuming effort and costs.
You need an Ethernet LAN adapter that supports Wake‑On‑LAN, a client with Wake‑On‑LAN capability, and software such as LDCM Rev. 3.10 or later to trigger the wake‑up frame.
