Start here

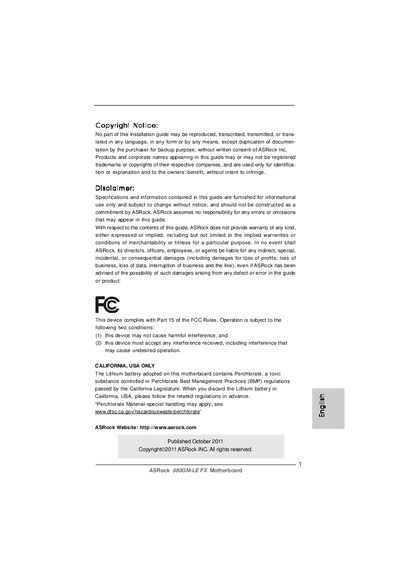

ASRock 880GM-LE FX Motherboard User Manual
This manual covers the hardware installation steps, including motherboard layout, CPU socket, memory modules, and connector descriptions. It also explains BIOS features, over‑clocking tools, and the included support CD utilities.
Additional sections describe the integrated AMD Radeon HD 4250 graphics, Realtek LAN controller, audio codec, SATA and USB interfaces, as well as safety warnings, certifications, and troubleshooting tips.
ASRock 880GM-LE specifications
| CPU socket | Socket AM3+ |
|---|---|
| Supported CPUs | Eight‑core AM3+ processors |
| Memory type | DDR3 1800 (dual‑channel) |
| Maximum memory | 8 GB |
| Integrated graphics | AMD Radeon HD 4250 (DX10.1, Shader Model 4.1) |
| Audio codec | Realtek ALC662 5.1‑channel |
| USB ports | 6 × USB 2.0 |
| SATA ports | 6 × SATA 2.0 |
| PCI Express x16 slots | 1 × PCI Express 2.0 x16 |
| Network controller | Realtek RTL8111DL Gigabit Ethernet |
Source: ASRock 880GM-LE FX User Manual
All ASRock 880GM-LE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Does the ASRock 880GM-LE FX support AMD AM3+ eight‑core processors?
Yes, the board supports Socket AM3+ eight‑core processors.
What audio codec is used on this motherboard?
It uses the Realtek ALC662 5.1‑channel audio codec.
What CPU socket does the ASRock 880GM-LE motherboard use?
It uses an AM3 CPU socket.
How many SATA II connectors are provided on the board?
The motherboard provides six SATA II connectors.
What CPU socket does the ASRock 880GM-LE motherboard use?
It uses an AM3 CPU socket.
How many DDR3 memory slots are available and what is the maximum supported memory?
The board has 2 DDR3 DIMM slots and supports up to 8 GB of system memory.
