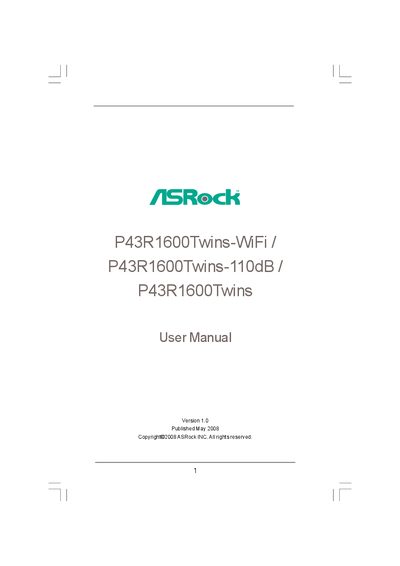

ASROCK P43R1600Twins-WiFi P43R1600Twins-110dB P43R1600Twins User Manual
This manual covers the complete hardware installation process for the ASRock P43R1600Twins motherboard, including package contents, CPU and memory installation, expansion slot usage, and connector wiring. It also details BIOS configuration, over‑clocking features, and software support via the included support CD.
Additional sections describe the integrated Wi‑Fi module (for the Wi‑Fi variant), audio and LAN interfaces, and safety warnings such as FCC compliance and battery disposal regulations.
ASRock P43R1600Twins specifications
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | LGA 775 (775‑Pin) |
| Chipset | Northbridge Intel P43, Southbridge Intel ICH10R |
| LAN Controller | Realtek RTL8111B/RTL8111C Gigabit LAN |
All ASRock P43R1600Twins documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does the green LAN port LED indicate?
A green blinking LED shows a 1 Gbps connection with data activity.
Which CPU socket is used on this motherboard?
The motherboard uses a 775‑pin LGA 775 socket.
What is the form factor of the ASRock P43R1600Twins motherboard?
It uses an ATX form factor measuring 12.0 in × 9.6 in.
How many DDR3 memory slots does the motherboard provide?
The board has two DDR3 DIMM slots.
How many USB 2.0 ports are provided on the rear panel?
The rear panel provides six ready‑to‑use USB 2.0 ports.
From: ASROCK P43R1600Twins-WiFi P43R1600Twins-110dB P43R1600Twins User Manual
What is the maximum supported DDR2 memory capacity?
The motherboard supports up to 16 GB of DDR2 memory.
From: ASROCK P43R1600Twins-WiFi P43R1600Twins-110dB P43R1600Twins User Manual
