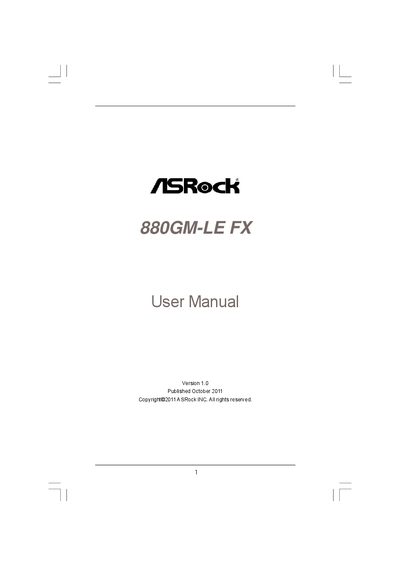

ASRock 880GM-LE FX Motherboard User Manual

About this manual

This manual introduces the ASRock 880GM-LE FX Micro ATX motherboard, covering package contents, hardware specifications, and safety precautions. It guides users through CPU, memory, and expansion slot installation, as well as dual‑monitor and graphics setup.

The document also details the BIOS Setup Utility, software support, driver installation, and utilities on the support CD, plus contact information for technical assistance.

What's inside

• Package Contents
• Specifications
• CPU Installation
• Memory Module Installation
• Expansion Slots
• Dual Monitor and Surround Display Features
• BIOS Setup Utility
• Software Support
• Support CD Information
• Contact Information

Specifications

Frequently asked questions

What operating systems are supported by the 880GM-LE FX motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, XP Media Center, and XP 64‑bit.

How many SATA ports does the motherboard provide?

The board includes six SATA2 3.0 Gb/s connectors that support RAID, NCQ, AHCI, and Hot Plug.

What is the maximum shared memory for the integrated graphics?

The integrated AMD Radeon HD 4250 can use up to 512 MB of shared system memory.

Does the motherboard support Wake‑On‑LAN?

Yes, the LAN controller supports Wake‑On‑LAN and PXE boot.
