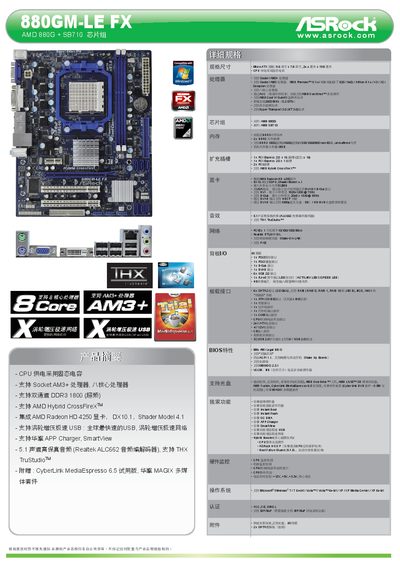

The 880GM-LE FX Trial is an AMD 880G + SB710 chipset micro-ATX motherboard that supports Socket AM3+ processors, dual-channel DDR3 memory technology, DVI-D and D-Sub interfaces, and integrated AMD Radeon HD 4250 graphics.
This manual covers the ASRock 880GM-LE FX motherboard, describing its hardware components, supported processors, memory options, and built‑in features. It includes installation guidance, BIOS settings, and troubleshooting tips for end users.
Key sections detail the CPU power design, dual‑channel DDR3 memory support, AMD Radeon HD 4250 integrated graphics, Realtek ALC662 audio codec, and networking capabilities such as Gigabit Ethernet and XFast LAN. The document also lists expansion slots, storage interfaces, and software utilities bundled with the board. This manual is written in Chinese.
| CPU socket | Socket AM3+ |
|---|---|
| Supported CPUs | Eight‑core AM3+ processors |
| Memory type | DDR3 1800 (dual‑channel) |
| Maximum memory | 8 GB |
| Integrated graphics | AMD Radeon HD 4250 (DX10.1, Shader Model 4.1) |
| Audio codec | Realtek ALC662 5.1‑channel |
| USB ports | 6 × USB 2.0 |
| SATA ports | 6 × SATA 2.0 |
| PCI Express x16 slots | 1 × PCI Express 2.0 x16 |
| Network controller | Realtek RTL8111DL Gigabit Ethernet |
Yes, the board supports Socket AM3+ eight‑core processors.
It uses the Realtek ALC662 5.1‑channel audio codec.
The motherboard provides six USB 2.0 ports.
The board includes an AMD Radeon HD 4250 graphics chip.
