Key facts
- Brand
- ASRock
- Model
- ALIVEN570SLI-ESATA2
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

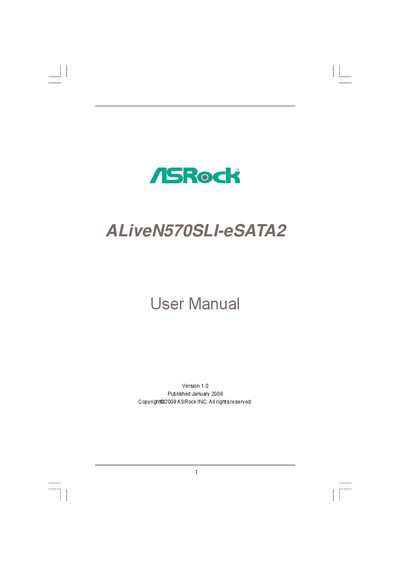

ASRock ALiveN570SLI-eSATA2 Motherboard User Manual
The ALiveN570SLI-eSATA2 is an ATX‑form factor motherboard featuring an NVIDIA nForce 570 SLI chipset, support for AMD AM2+/AM2 CPUs, and dual‑channel DDR2 memory up to 8 GB. It includes a range of connectivity options such as 6 SATAII ports, HDMI‑SPDIF, Gigabit LAN, and audio via an ALC888 codec.
This manual guides users through unpacking, hardware installation, BIOS configuration, SLI operation, over‑clocking precautions, and software support. It also details the contents of the support CD, driver installation, and troubleshooting steps.
ASRock ALIVEN570SLI-ESATA2 specifications
| Form Factor | ATX (12.0" x 8.4") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Chipset | NVIDIA nForce 570 SLI |
| Memory Slots | 4 DDR2 DIMM slots (dual channel) |
| Maximum Memory | 8 GB |
| SATA Connectors | 6 x SATAII 3.0 Gb/s |
| USB Ports | 4 Ready‑to‑Use USB 2.0 ports |
| Audio | 7.1‑channel HD audio (ALC888 codec) |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
| BIOS | 4 MB AMI BIOS |
Source: ASRock ALiveN570SLI-eSATA2 Motherboard Installation Guide
All ASRock ALIVEN570SLI-ESATA2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPUs are supported by the ALiveN570SLI-eSATA2 motherboard?
It supports Socket AM2+ and AM2 processors, including AMD Phenom, Athlon 64, Athlon 64 X2, and Sempron models.
From: ASRock ALiveN570SLI-eSATA2 Motherboard Installation Guide
How many DDR2 memory slots does the board have?
The motherboard provides four DDR2 DIMM slots arranged in dual‑channel configuration.
From: ASRock ALiveN570SLI-eSATA2 Motherboard Installation Guide
Which Windows operating systems are supported?
The motherboard supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.
What chipset is used on the ALiveN570SLI‑eSATA2?
The board uses the NVIDIA nForce 570 SLI chipset.
