Key facts
- Brand
- ASRock
- Model
- P43D1600Twins-1394
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-03-15
Start here

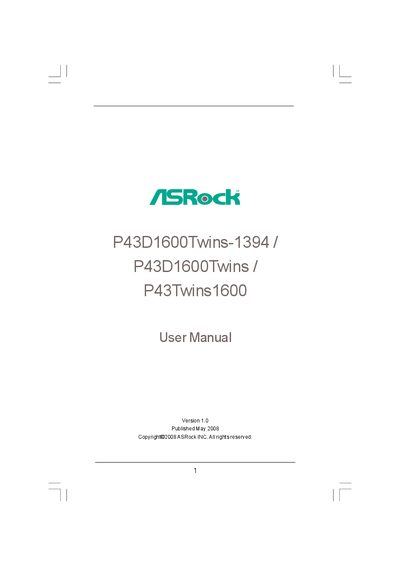

ASROCK P43D1600Twins-1394 P43D1600Twins P43Twins1600 User Manual
This manual introduces the ASRock P43D1600Twins series motherboards, lists the package contents, and details the hardware specifications such as CPU support, memory configuration, expansion slots, and rear I/O connectors. It also explains the installation process for the CPU, memory, storage devices, and other components.
Later sections cover the BIOS Setup Utility, including navigation, configuration options, and how to save or discard changes. The final chapter describes the Support CD, driver installation, utilities, and contact information for technical support.
ASRock P43D1600Twins-1394 specifications
| Form factor | ATX 12.0" x 9.6" (30.3 cm x 24.4 cm) |
|---|---|
| CPU socket | LGA 775 |
| Front‑Side Bus speeds | 1600 / 1333 / 1066 / 800 MHz |
| USB ports | 2 × USB 2.0 (additional external ports available) |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
Source: ASRock P43D1600Twins-1394 Motherboard Installation Guide
All ASRock P43D1600Twins-1394 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which CPU socket does the P43D1600Twins-1394 motherboard support?
It supports the LGA 775 socket for Intel Core 2 and compatible processors.
From: ASRock P43D1600Twins-1394 Motherboard Installation Guide
Does the motherboard include a Gigabit Ethernet port?
Yes, it features a Gigabit LAN controller supporting 10/100/1000 Mb/s.
From: ASRock P43D1600Twins-1394 Motherboard Installation Guide
What Windows operating systems are supported by the ASRock P43D1600Twins motherboard?
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
From: ASROCK P43D1600Twins-1394 P43D1600Twins P43Twins1600 User Manual
How many USB ports are available on the rear panel?
The rear panel provides six ready‑to‑use USB 2.0 ports.
From: ASROCK P43D1600Twins-1394 P43D1600Twins P43Twins1600 User Manual
