Key facts
- Brand
- ASRock
- Model
- ALIVENF5SLI-1394
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

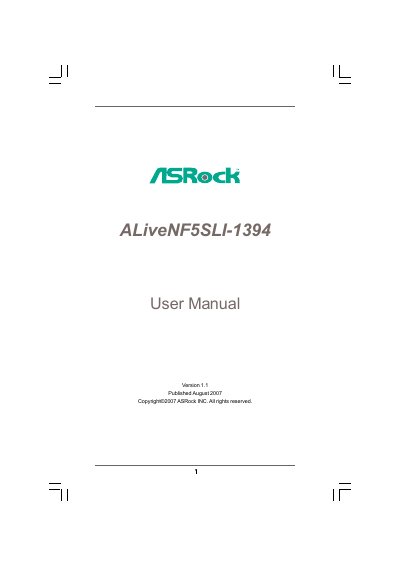

ASRock ALiveNF5SLI-1394 Motherboard User Manual
This manual introduces the ASRock ALiveNF5SLI-1394 motherboard, detailing its package contents, specifications, and minimum hardware requirements. It also lists supported PCI Express VGA cards for SLI mode and describes the layout of the board and I/O connectors.
Installation chapters guide users through CPU, memory, and expansion slot installation, as well as SATA, eSATAII, and other peripheral connections. Subsequent sections cover BIOS setup, overclocking technology, Windows driver installation, and software support via the included support CD.
ASRock ALIVENF5SLI-1394 specifications
| Form factor | ATX 12.0‑in x 9.0‑in (30.5 cm x 22.9 cm) |
|---|---|
| CPU socket | Socket AM2 for AMD Athlon 64FX/64X2/X2/64 and Sempron processors |
| Chipset | NVIDIA nForce 560 SLI |
| Memory slots | 4 DDRII DIMM slots, DDRII800/667/533, max 8 GB |
| PCI‑Express slots | 1 × PCIe x16, 2 × PCIe x8 (SLI), 1 × PCIe x1, 3 × PCI |
| LAN | Gigabit Ethernet (Realtek RTL8211B) |
Source: ASRock ALiveNF5SLI-1394 Motherboard Installation Guide
All ASRock ALIVENF5SLI-1394 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the ALiveNF5SLI-1394 motherboard use?
It uses a Socket AM2 for AMD Athlon 64FX/64X2/X2/64 and Sempron processors.
From: ASRock ALiveNF5SLI-1394 Motherboard Installation Guide
How many DDRII DIMM slots are available and what is the maximum memory capacity?
The board provides four DDRII DIMM slots with support for DDRII800/667/533 and a maximum memory capacity of 8 GB.
From: ASRock ALiveNF5SLI-1394 Motherboard Installation Guide
Which Windows operating systems are supported by the ALiveNF5SLI-1394 motherboard?
The motherboard supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.
What type of CPU socket does the motherboard use?
It uses a Socket AM2 compatible with AMD Athlon64FX, 64X2, X2, 64 and Sempron processors.
