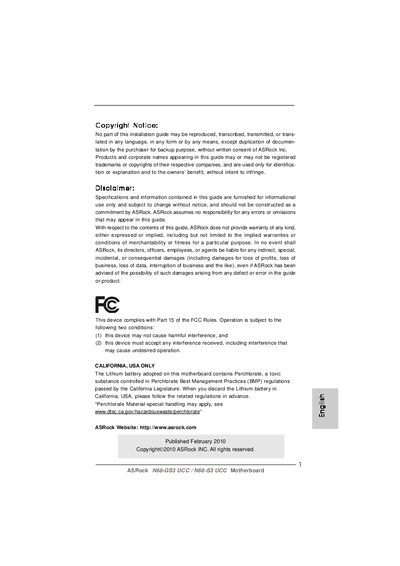

ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
This manual introduces the ASRock N68-GS3 UCC and N68-S3 UCC Micro‑ATX motherboards, outlines the package contents, and details the hardware layout, connectors, and BIOS features. It also covers safety precautions, CPU installation, and over‑clocking warnings.
The document includes detailed specifications such as supported AMD AM3 processors, dual‑channel DDR3 memory support, integrated NVIDIA GeForce 7025 graphics, and various I/O ports. Software utilities like ASRock OC Tuner, Intelligent Energy Saver, and Instant Flash are described for system tuning and BIOS updates.
ASRock N68-S3 UCC specifications
| Form Factor | Micro ATX 9.6" x 7.0" |
|---|---|
| CPU Support | AMD AM3 processors (Phenom II, Athlon II, Sempron) |
| Memory | 2 DDR3 DIMM slots, up to 8 GB, DDR3‑1600/1333/1066/800 |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Integrated Graphics | NVIDIA GeForce 7025, DX9.0, up to 256 MB shared memory |
| LAN | Realtek Giga PHY RTL8211CL (10/100/1000 Mb/s) or RTL8201EL (10/100 Mb/s) |
Source: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
All ASRock N68-S3 UCC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many SATA ports are provided on the motherboard?
The motherboard includes four SATA ports: SATAII_1, SATAII_2, SATAII_3, and SATAII_4.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard Owner's Manual
What are the model numbers of this ASRock motherboard?
The model numbers are N68-GS3 UCC and N68-S3 UCC.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard Owner's Manual
Which AMD processors are supported by the N68‑GS3 UCC / N68‑S3 UCC motherboard?
The board supports AM3 processors including AMD Phenom II X4/X3/X2 (except 920/940), Athlon II X4/X3/X2 and Sempron CPUs.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
What integrated graphics are included?
The board features an integrated NVIDIA GeForce 7025 graphics processor with DirectX 9.0, Pixel Shader 3.0 and up to 256 MB of shared memory.
From: ASRock N68-GS3 UCC / N68-S3 UCC Motherboard User Manual
How do I enable the UCC CPU core unlocking feature?
Enter the BIOS by pressing F2 or DEL, set “ASRock UCC” to Enabled, then press F10 to save and exit.
What is the OC DNA feature?
OC DNA lets you save BIOS overclock settings as a file that can be shared with other users of the same motherboard and BIOS version, and later loaded to apply the same settings.
