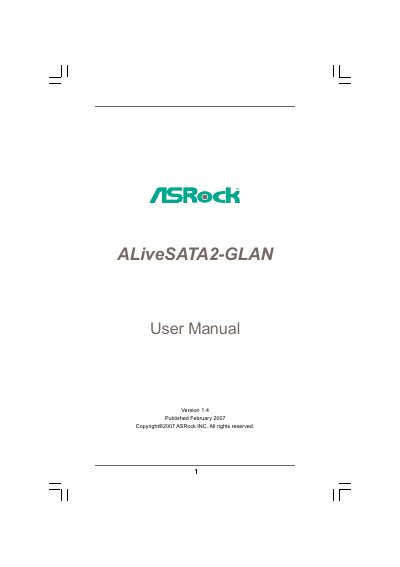

ASRock ALiveSATA2-GLAN User Manual
This manual introduces the ASRock ALiveSATA2-GLAN motherboard, lists the package contents, and details the hardware specifications, including CPU socket, chipset, memory, and expansion options. It also outlines minimum hardware requirements for Windows Vista Premium and basic configurations.
The guide covers step‑by‑step installation of the CPU, memory modules, expansion cards, and connectors, followed by BIOS setup, hardware health monitoring, and software support. It includes driver installation instructions, Windows OS setup, and troubleshooting information.
ASRock ALiveSATA2-GLAN specifications
| Form Factor | ATX 12.0‑in x 8.0‑in |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon™ 64FX/64X2/64 and Sempron |
| Memory Slots | 4 DDRII DIMM slots |
| Maximum Memory Capacity | 8 GB |
| Northbridge Chipset | VIA® K8T890 CF |
| Southbridge Chipset | VIA® VT8237A |
| LAN Controller | Realtek RTL8111B Gigabit LAN |
| Audio Codec | ALC888 |
| SATA Connectors (VIA) | 2 × 1.5 Gb/s, RAID 0/1/JBOD, Hot Plug |
| SATA Connectors (JMicron) | 2 × 3.0 Gb/s, RAID 0/1/JBOD, NCQ, Hot Plug |
Source: ASRock ALiveSATA2-GLAN Motherboard Installation Guide
All ASRock ALiveSATA2-GLAN documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPUs are supported by the ASRock ALiveSATA2-GLAN motherboard?
It supports AMD Athlon™ 64FX, 64X2, 64 and Sempron processors in an AM2 socket.
Which LAN controller is integrated and does it support Wake‑On‑LAN?
A Realtek RTL8111B Gigabit LAN controller is integrated and it supports Wake‑On‑LAN.
What CPU socket does the ALiveSATA2-GLAN motherboard use?
It uses a Socket AM2 for AMD Athlon 64FX/64X2/64 and Sempron processors.
What is the maximum memory supported?
The motherboard supports up to 8 GB of DDRII memory.
