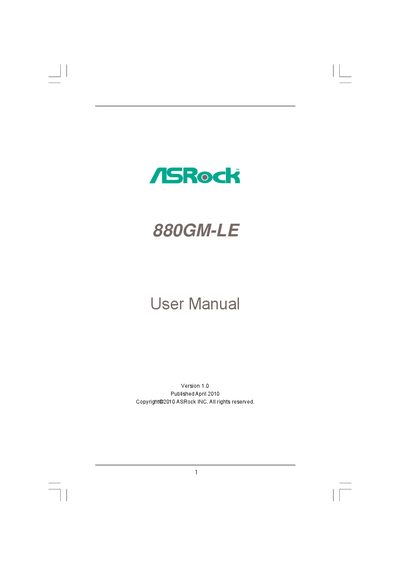

880GM-LE User Manual
This manual introduces the ASRock 880GM-LE motherboard and guides users through hardware installation, BIOS configuration, and software support. It also includes safety notices, warranty information, and contact details.
Key sections cover package contents, detailed specifications, CPU and memory installation, expansion slot usage, SATA and IDE connections, BIOS setup utility, driver and utility installation from the support CD, and operating‑system installation procedures.
| Form Factor | Micro ATX 9.6" x 7.8" |
|---|---|
| CPU Socket | Socket AM3 (AMD Phenom II, Athlon II, Sempron) |
| Northbridge Chipset | AMD 880G |
| Southbridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM |
| Maximum Memory | 8 GB |
| PCI Express Slot | 1 x PCIe 2.0 x16 (blue) |
| Integrated Graphics | AMD Radeon HD 4250 |
| Audio Codec | Realtek ALC662 (5.1 CH HD Audio) |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
| BIOS | 8 Mb AMI BIOS |
The motherboard supports Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, Windows XP, Windows XP Media Center and Windows XP 64‑bit.
There are six ready‑to‑use USB 2.0 ports on the rear I/O panel.
The integrated graphics can use up to 512 MB of shared system memory.
