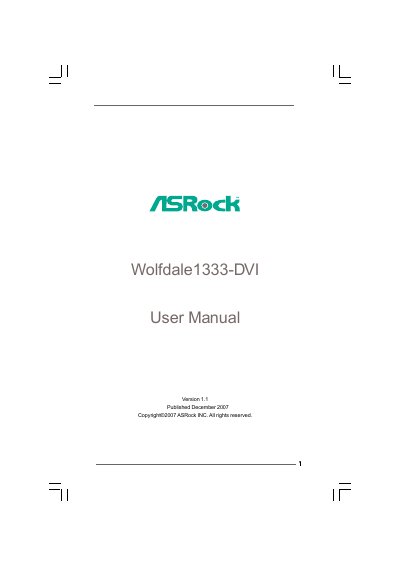

ASRock Wolfdale1333-DVI User Manual
This manual covers everything needed to install and configure the ASRock Wolfdale1333-DVI motherboard, including hardware layout, CPU and memory installation, and connector descriptions. It also details BIOS configuration options, overclocking cautions, and software support via the included support CD.
Additional sections explain supported operating systems, networking, audio, and graphics features, as well as safety warnings and regulatory compliance. The document is intended for end‑users and system builders who need step‑by‑step guidance for this product.
ASRock Wolfdale1333-DVI specifications
| Form Factor | Micro ATX (9.6 in x 8.7 in) |
|---|---|
| CPU Socket | LGA775 |
| Chipset | Northbridge Intel 945GC A2, Southbridge Intel ICH7 |
| Expansion Slots | 1× PCI‑Express x16, 1× PCI‑Express x1, 2× PCI |
| Audio Codec | Realtek ALC660VD 5.1‑channel HD Audio |
| LAN | Realtek PCIE x1 LAN 8101E, 10/100 Mbps |
| SATA Connectors | 4 × SATAII 3.0 Gb/s (no RAID) |
All ASRock Wolfdale1333-DVI documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the Wolfdale1333-DVI motherboard use?
It uses an LGA775 socket for Intel dual‑core processors.
How many SATA connectors are provided on the board?
The motherboard provides four SATAII 3.0 Gb/s connectors.
What CPU socket does the Wolfdale1333-DVI motherboard use?
It uses an LGA 775 socket that supports Intel Dual Core, Core 2 Duo, Pentium Dual Core, and Celeron processors.
Does the motherboard provide a DVI video output?
Yes, it includes a DVI‑D port driven by the integrated Intel GMA 950 graphics controller.
