Key facts
- Brand
- ASRock
- Model
- 4CORE1600TWINS-P35
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-15
Start here

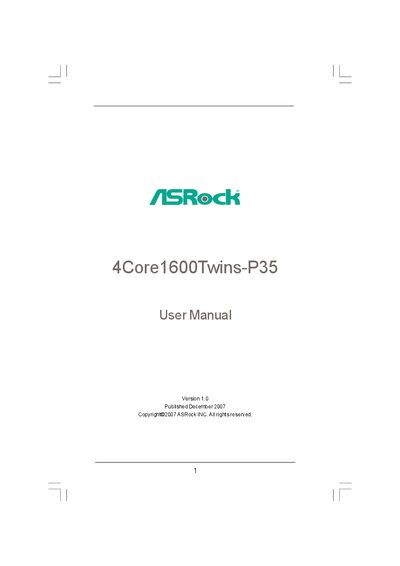

ASRock 4Core1600Twins-P35 Motherboard User Manual
This manual introduces the ASRock 4Core1600Twins-P35 ATX motherboard, detailing its package contents, hardware layout, and key features such as support for Intel LGA 775 CPUs, dual‑channel DDR2/DDR3 memory, and multiple expansion slots. It also explains safety notices, warranty disclaimer, and regulatory compliance.
The guide walks users through hardware installation, BIOS setup, driver installation, and operating‑system requirements, and includes troubleshooting tips, overclocking cautions, and information about the supplied support CD and utilities.
ASRock 4CORE1600TWINS-P35 specifications
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | LGA 775 (775‑Pin) |
| DDR3 DIMM Slots | 2 slots (green) |
| DDR2 DIMM Slots | 4 slots (yellow and orange) |
| Maximum Memory Capacity | 4 GB DDR3, 8 GB DDR2 |
| PCI Express x16 Slots | 1 slot |
| AGI Express Slot | 1 slot (PCIe x4) |
| LAN Controller | Realtek RTL8111B/RTL8111C Gigabit |
| SATA Connectors | 4 SATAII 3.0 Gb/s, 1 eSATAII |
Source: ASRock 4Core1600Twins-P35 Motherboard Installation Guide
All ASRock 4CORE1600TWINS-P35 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of CPU socket does the 4Core1600Twins-P35 use?
It uses an LGA 775 (775‑Pin) CPU socket.
From: ASRock 4Core1600Twins-P35 Motherboard Installation Guide
How many DDR3 memory slots are available on this motherboard?
The board provides two DDR3 DIMM slots.
From: ASRock 4Core1600Twins-P35 Motherboard Installation Guide
What CPU socket does the 4Core1600Twins-P35 motherboard use?
It uses an LGA 775 socket for Intel Core2, Pentium Dual Core, Celeron and compatible CPUs.
How many SATAII ports are available on this motherboard?
The board provides four SATAII 3.0 Gb/s ports that support NCQ, AHCI, and Hot Plug.
