Key facts
- Brand
- ASRock
- Model
- 4CORE1600TWINS-P35D
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-02
Start here

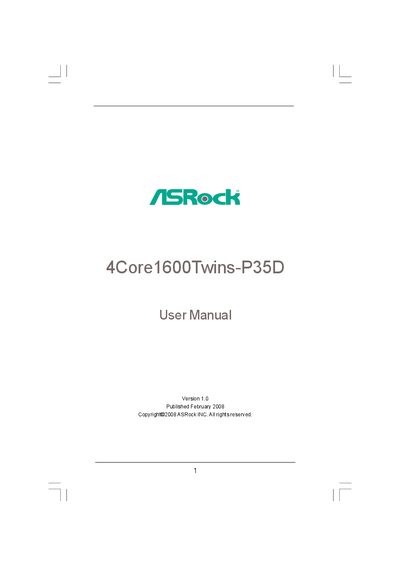

ASRock 4Core1600Twins-P35D Guide
The ASRock Twins-P35D motherboard manual provides step‑by‑step instructions for installing the board, configuring BIOS settings, and installing the supplied support CD. It also lists hardware requirements, safety warnings, and overclocking guidelines.
Additional sections cover audio and network interfaces, SATA/eSATA connections, and detailed specifications of the CPU socket, memory types, and expansion slots. The manual ends with troubleshooting tips and contact information for technical support. This manual is written in Chinese.
ASRock 4CORE1600TWINS-P35D specifications
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | 775‑Pin |
| Chipset | Northbridge Intel® P35, Southbridge Intel® ICH9 |
| Memory Slots | 2 DDR3 slots (max 4 GB) and 4 DDR2 slots (max 8 GB) |
| Maximum DDR3 Capacity | 4 GB |
| Maximum DDR2 Capacity | 8 GB |
| Expansion Slots | 1 PCI‑Express x16, 1 AGI Express (PCI‑E x4), 3 PCI |
| LAN Controller | Realtek RTL8111B/RTL8111C (10/100/1000 Mb/s) |
| SATA Connectors | 4 SATAII 3.0 Gb/s ports (NCQ, AHCI, Hot Plug) |
| BIOS | 4 Mb AMI BIOS |
All ASRock 4CORE1600TWINS-P35D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the ASRock 4Core1600Twins-P35D use?
It uses a 775‑Pin CPU socket.
How many DDR3 memory slots are available and what is the maximum DDR3 capacity?
The board provides 2 DDR3 DIMM slots and supports up to 4 GB of DDR3 memory.
Which Windows operating systems are supported by the Twins‑P35D motherboard?
The board supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
What type of CPU socket is used on the Twins‑P35D board?
The board uses an LGA 775 socket compatible with Intel Core2, Core, Pentium Dual Core and Celeron processors.
