Key facts
- Brand
- ASRock
- Model
- 4CORE1333-FULLHD
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-02
Start here

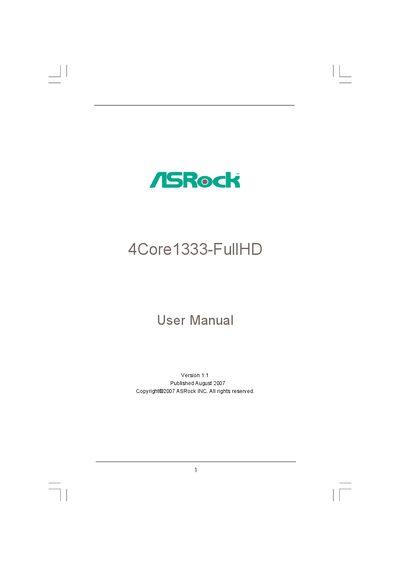

ASRock 4Core1333-FullHD User Manual
This manual introduces the ASRock 4Core1333-FullHD motherboard, a Micro ATX board featuring LGA 775 socket, ATI RS600/SB600 chipset, and integrated ATI X1250 graphics. It outlines package contents, specifications, and hardware requirements for Windows Vista and 1080p Blu‑ray playback.
The guide walks you through CPU, memory, and peripheral installation, BIOS configuration, and software support, including driver installation from the supplied Support CD. Safety warnings and overclocking cautions are also included.
ASRock 4CORE1333-FULLHD specifications
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Socket | LGA 775 |
| Supported FSB | 1333/1066/800/533 MHz |
| Northbridge Chipset | ATI RS600 |
| Southbridge Chipset | ATI SB600 |
| Memory Slots | 4 × DDRII DIMM |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 × PCI‑E x16, 1 × PCI‑E x1, 2 × PCI, 1 × HDMR |
| Integrated Graphics | ATI X1250 |
| Audio Codec | ALC888 |
| LAN | Gigabit Ethernet (Realtek RTL8111B) |
| BIOS | 4 MB AMI BIOS |
All ASRock 4CORE1333-FULLHD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many SATA connectors are on the motherboard?
The board provides four SATAII 3.0 Gb/s connectors that support RAID, NCQ, AHCI, and hot‑plug functions.
Does the 4Core1333-FullHD support overclocking?
Yes, it supports Untied Overclocking Technology, but the manual warns that overclocking can affect stability and may damage components.
