Key facts
- Brand
- ASRock
- Model
- 4CORE1333-GLAN
- Category
- Motherboard
- Industry
- Computers
- Documents
- 6
- Languages
- EN
- Last added
- 2012-05-02
Start here

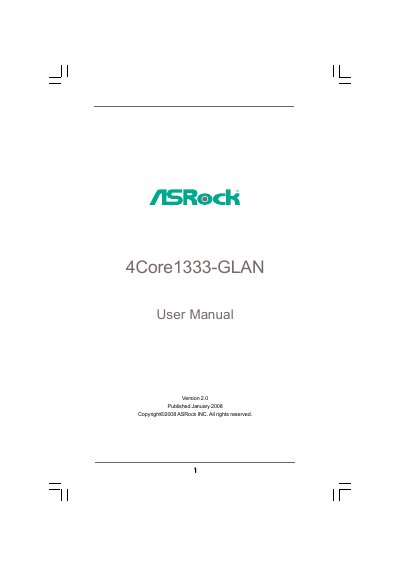

ASRock 4Core1333-GLAN Motherboard User Manual
This manual introduces the ASRock 4Core1333-GLAN motherboard, describing its features, hardware layout, and the contents of the support CD. It guides users through safe installation, component connections, and system setup.
The document also covers BIOS setup utilities, boot and security options, and detailed technical specifications such as CPU socket, memory support, LAN, audio, and expansion slots, helping users configure and troubleshoot the board.
ASRock 4CORE1333-GLAN specifications
| Form Factor | Micro ATX (9.6 in x 9.6 in) |
|---|---|
| CPU Socket | 775‑Pin LGA socket |
| Chipset | Northbridge Intel G31, Southbridge Intel ICH7 |
| LAN | Realtek RTL8111B/RTL8111C Gigabit Ethernet |
Source: ASRock 4Core1333-GLAN/M Motherboard Installation Guide
All ASRock 4CORE1333-GLAN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of CPU socket does the ASRock 4Core1333-GLAN/M motherboard use?
It uses a 775‑Pin LGA socket.
From: ASRock 4Core1333-GLAN/M Motherboard Installation Guide
Which LAN controller is integrated on this motherboard?
A Realtek RTL8111B/RTL8111C Gigabit Ethernet controller is integrated.
From: ASRock 4Core1333-GLAN/M Motherboard Installation Guide
What CPU socket does the ASRock 4Core1333-GLAN/M motherboard use?
It uses an LGA 775 socket.
How many DDR2 memory slots are available and what is the maximum memory capacity?
The board provides four DDR2 DIMM slots with a maximum capacity of 4 GB.
What type of CPU socket does the 4Core1333-GLAN motherboard use?
It uses an LGA 775 socket for Intel processors.
From: ASRock 4Core1333-GLAN Motherboard Quick Installation Guide
How many SATA II connectors are provided on the board?
The motherboard provides four SATA II (3.0 Gb/s) connectors.
From: ASRock 4Core1333-GLAN Motherboard Quick Installation Guide
