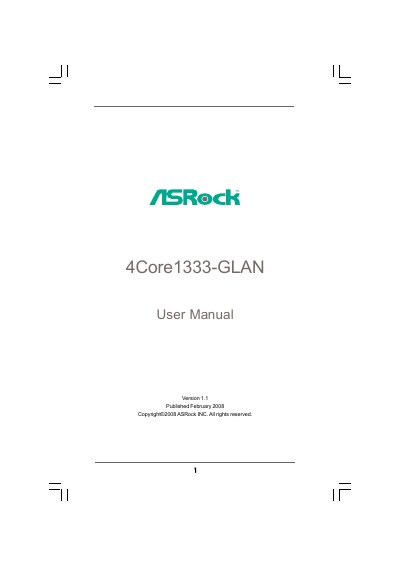

ASRock 4Core1333-GLAN Motherboard User Manual

This document is the user manual for ASRock 4Core1333-GLAN motherboard, which describes the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 43
File format: PDF
File size: 383 KB
Published: 15 March, 2012
Updated: 29 September, 2023
Model: 4CORE1333-GLAN
MD5 checksum: 673AA8E0425478DA6CA06270F5A44612
PDF: ASRock 4Core1333-GLAN Motherboard User Manual PDF

About this manual

This manual guides users through installing the ASRock 4Core1333-GLAN ATX motherboard, configuring jumpers, connecting peripherals, and setting up the BIOS. It also includes safety notices, warranty information, and FCC compliance details.

The document contains a detailed specifications table, motherboard layout diagram, and instructions for using the support CD with drivers and utilities. Troubleshooting tips and overclocking cautions are provided for advanced users.

What's inside

Introduction
Installation
BIOS Setup Utility
Software Support
Specifications
Motherboard Layout
Connector Overview
Safety and Warranty

Specifications

Form Factor	ATX (12.0" x 8.6")
CPU Socket	LGA 775
Supported Chipset	Intel P31/G31 Northbridge, Intel ICH7 Southbridge
LAN Interface	Gigabit LAN (Realtek RTL8111B/RTL8111C)
Audio Codec	7.1‑channel HD Audio (ALC888)
SATA Connectors	4 x Serial ATAII 3.0 Gb/s connectors
BIOS	4 Mb AMI BIOS

Frequently asked questions

What CPU socket does the ASRock 4Core1333-GLAN motherboard use?

It uses an LGA 775 socket for Intel Core 2 and compatible processors.

How many SATAII ports are available on the board?

The motherboard provides four Serial ATAII (SATAII) connectors.

What is the maximum memory capacity supported?

The board can support up to 4 GB of DDRII memory.

Which LAN controller is integrated on the motherboard?

A Realtek RTL8111B/RTL8111C Gigabit LAN controller is integrated.
