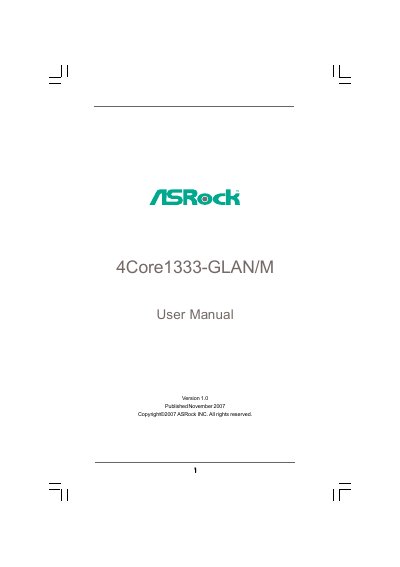

4Core1333-GLAN/M User Manual, provide product features and usage instructions
The ASRock 4Core1333-GLAN/M is a Micro ATX motherboard designed for Intel LGA 775 processors, supporting a range of Core 2 and Pentium Dual‑Core CPUs. It features Intel G31 northbridge, ICH7 southbridge, and integrated Gigabit LAN, graphics, and audio.
This manual covers package contents, detailed installation procedures, BIOS setup utility options, and software support including driver and utility installation from the supplied support CD. It also lists hardware specifications, safety warnings, and compliance information.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in) |
|---|---|
| CPU Socket | LGA 775 |
| Supported Chipset | Northbridge Intel G31, Southbridge Intel ICH7 |
| Memory Slots | 4 x DDR2 DIMM, max 4 GB, DDR2 800/667 |
| Expansion Slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1, 2 x PCI |
| Integrated LAN | Realtek RTL8111B/RTL8111C Gigabit Ethernet |
It uses an LGA 775 socket.
The board provides four DDR2 DIMM slots with a maximum capacity of 4 GB.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
A Realtek RTL8111B/RTL8111C Gigabit LAN controller is integrated.
