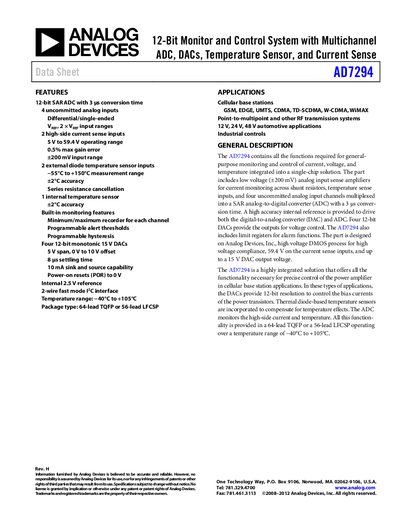

The AD7294 is a 12-bit monitor and control system with multichannel ADC, DACs, temperature sensor, and current sense function.
The AD7294 combines a 12‑bit SAR analog‑to‑digital converter, four 12‑bit DACs, high‑side current‑sense inputs and temperature‑sensor inputs in a single‑chip solution. It is designed for high‑voltage monitoring in base‑station power amplifiers, automotive and industrial control systems.
The device operates over a wide temperature range (‑40 °C to +105 °C) and supports supply voltages from 5 V up to 59.4 V on the current‑sense inputs. Detailed specifications, functional block diagrams, and register maps are provided for hardware designers and firmware developers.
| ADC Resolution | 12 bits |
|---|---|
| ADC Conversion Time | 3 ps |
| High‑Side Current Sense Input Range | 5 V to 59.4 V |
| Number of Uncommitted Analog Inputs | 4 |
| Operating Temperature Range | ‑40 °C to +105 °C |
| Number of Integrated DACs | 4 (12‑bit) |
The AD7294 ADC provides a 12‑bit resolution.
It operates from –40 °C up to +105 °C.
The device includes four 12‑bit DACs.
The high‑side current‑sense inputs accept 5 V to 59.4 V.
