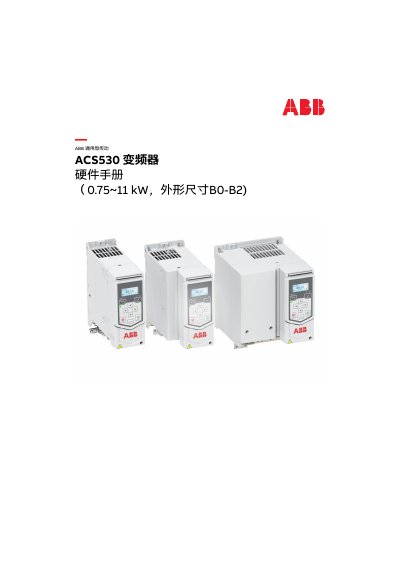

Hardware manual for the ABB ACS530 variable frequency drive covering safety, installation, wiring, maintenance and technical data.
The ABB ACS530 hardware manual provides detailed safety instructions, model identification, and hardware description for the variable frequency drive. It includes guidelines for electrical and mechanical installation, wiring diagrams, and a checklist to verify proper setup.
Later sections cover maintenance procedures, hardware diagnostics, technical specifications such as rated voltage, power range, dimensions, and safety‑torque‑cancel function, as well as compliance information and service contacts. This manual is written in Chinese.
| Power range | 0.75–11 kW |
|---|---|
| Rated voltage | 380–480 V AC |
| Enclosure size | B0, B1, B2 |
| Maximum braking resistor cable length | 10 m (33 ft) |
The ACS530 is rated for 380 V to 480 V AC.
The maximum allowed length for the braking resistor cable is 10 meters (33 feet).
