ABB ACS530 Hardware Manual

The ABB ACS530 hardware manual provides safety guidelines, installation steps, wiring details, and maintenance procedures for the inverter.

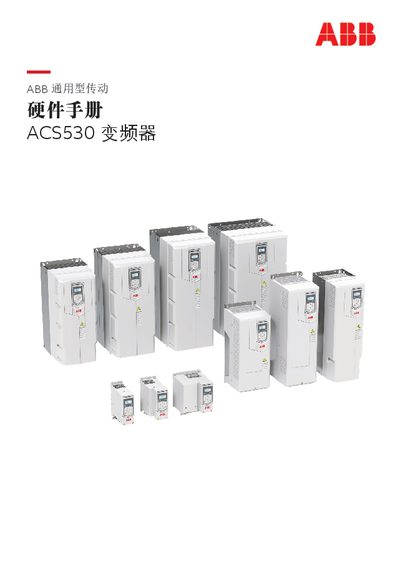

ABB ACS530 Hardware Manual - cover page
Brand
ABB
Document type
Service Manual
Language
Chinese
Pages
156
File format
PDF
File size
33.3 MB
Published
30 September, 2026
Updated
30 September, 2026
Model
ACS530
MD5 checksum
319D4A161924C22805C9E5FC226E30C2
PDF
ABB ACS530 Hardware Manual PDF

About this manual

This manual covers all safety precautions required when installing, operating, and maintaining the ABB ACS530 inverter, including warnings about electrical hazards, proper handling, and environmental protection. It also details the hardware layout, power and control connections, and provides a comprehensive checklist for installation verification.

Additional sections describe mechanical installation options, cable selection, technical data such as rated voltage and IP protection, and troubleshooting guidance for hardware diagnostics and the safety‑torque‑cancel function. This manual is written in Chinese.

What's inside

  • Safety Precautions
  • Inverter Model and Hardware Description
  • Electrical Installation Preparation
  • Mechanical Installation
  • Electrical Installation
  • Installation Checklist
  • Maintenance and Hardware Diagnostics
  • Technical Data
  • Safety Torque Cancel Function
  • Additional Information

Specifications

Rated Voltage380–480 V AC
IP ProtectionIP20
Typical Power Cable Size (R0‑R2)3×1.5 mm² copper + 1.5 mm² ground

Frequently asked questions

What is the rated voltage range for the ACS530 inverter?

The inverter is rated for 380 V to 480 V AC.

What IP protection level does the ACS530 have?

The ACS530 inverter has an IP20 protection rating.

Download PDF (33.3 MB)
