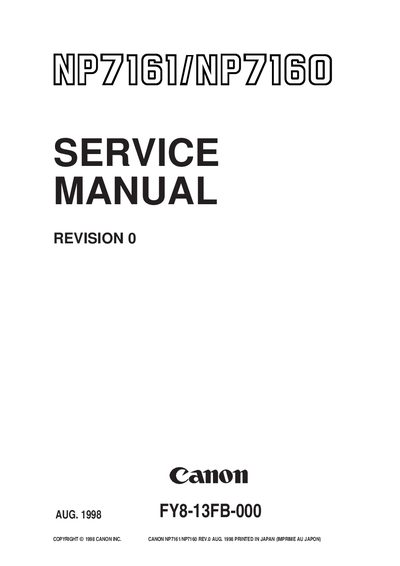

Canon NP7161/NP7160 Copier Service Manual

About this manual

This service manual covers the Canon NP7161/NP7160 copier, describing its main systems such as the exposure, image formation, pick‑up/feeding, fixing and auxiliary mechanisms. It lists optional accessories like the ADF‑G1, Stapler Sorter‑L1, MS‑C1 and Cassette Feeding Module‑C1.

The document is organized into chapters on general description, basic operation, each major system, installation, maintenance, servicing tables, troubleshooting guides and appendices with special tools and solvent lists, giving field technicians detailed reference material.

What's inside

• General Description
• Basic Operation
• Exposure System
• Image Formation System
• Pick‑Up/Feeding System
• Fixing System
• Installation
• Maintenance and Servicing
• Troubleshooting

Frequently asked questions

What optional accessories are available for the NP7161 copier?

The NP7161 can be equipped with the ADF‑G1, Stapler Sorter‑L1, MS‑C1 and a Cassette Feeding Module‑C1.

Where can I find the list of special tools needed for service?

The Appendix (A‑7) lists special tools such as the Door switch TKN‑0093 and the Mirror positioning tool FY9‑3009.
