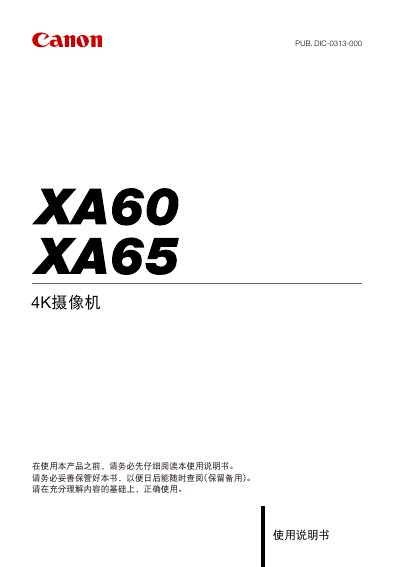

The Canon XA65/XA60 4K Camera User Manual provides setup, operation, recording, and maintenance instructions for the XA65/XA60 camcorder.
The XA65/XA60 is a compact 4K camcorder equipped with a 1/2.3‑inch CMOS sensor, 20× optical zoom lens and advanced image‑stabilisation, designed for versatile shooting scenarios. It supports MP4 and XF‑AVC recording formats, dual SD card slots, and a range of accessories such as a handgrip with infrared illumination.
This manual covers initial power‑up, battery charging, menu navigation, recording settings, audio configuration, lens operation, connectivity options (HDMI, USB‑C, SDI), and detailed specifications. It also includes troubleshooting, safety information, and guidance for using optional accessories like GPS receivers and remote controllers.
| Video compression (MP4) | MPEG‑4 AVC/H.264 |
|---|---|
| Audio formats (MP4) | MPEG‑2 AAC‑LC 16‑bit 48 kHz stereo, Linear PCM 16‑bit 48 kHz 4‑channel |
| Image sensor | 1/2.3‑inch CMOS, 21.14 MP (effective 8.29 MP) |
| Optical zoom | 20× |
| LCD touchscreen | 8.8 cm (3.5") colour capacitive, 2,760,000 dots |
| Weight (camera only) | 750 g |
| Power input | 7.4 V DC (battery) or 9.0 V DC via USB‑C adapter |
The camera has two SD card slots and can record the same clip on both cards (synchronised recording) or continue automatically onto the second card when the first fills.
The lens provides up to 20× optical zoom.
Yes, infrared recording is available using the built‑in infrared light on the handgrip for low‑light situations.
