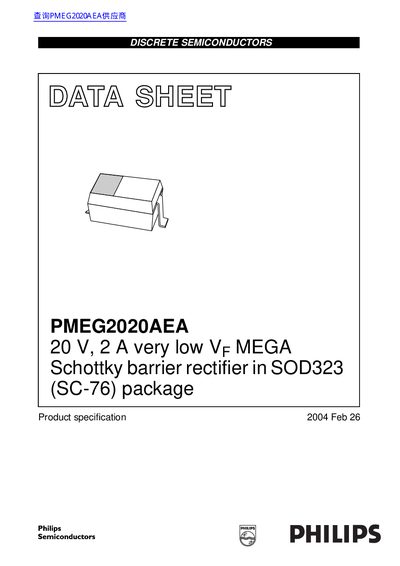

PHILIPS PMEG2020AEA 20 V 2 A very low VF MEGA Schottky barrier rectifier in SOD323 (SC-76) package handbook

PMEG2020AEA is a 20V, 2A very low VF MEGA Schottky barrier rectifier encapsulated in a SOD323 (SC-76) very small SMD plastic package.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 49 KB
Published: 03 July, 2012
Updated: 28 September, 2023
Model: SOD323
MD5 checksum: 0E4C382A27E9DFE345A20D63C88131C5
PDF: PHILIPS PMEG2020AEA 20 V 2 A very low VF MEGA Schottky barrier rectifier in SOD323 (SC-76) package handbook PDF

About this manual

The document is a product specification for the PMEG2020AEA, a discrete semiconductor component. It features a planar Maximum Efficiency General Application (MEGA) Schottky barrier design with an integrated guard ring for stress protection. The device is encapsulated in a very small SOD323 (SC-76) plastic surface-mounted package.

What's inside

Features
Applications
Description
Marking
Quick Reference Data
Pinning
Limiting Values
Thermal Characteristics
Electrical Characteristics

Specifications

Forward current	2 A
Reverse voltage	20 V
Package type	SOD323 (SC-76)
Junction temperature	- 150 °C

Frequently asked questions

What are the applications of this rectifier?

It is suitable for low voltage rectification, high efficiency DC/DC conversion, switch mode power supply, inverse polarity protection, and low power consumption applications.

What is the maximum storage temperature?

The device can be stored between -65 °C and +150 °C.
