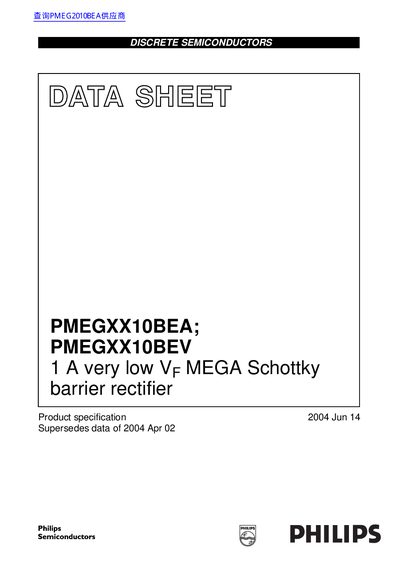

PMEGXX10BEA; PMEGXX10BEV is a 1A low VF MEGA Schottky barrier rectifier from Philips Semiconductors with very low forward voltage and very low power dissipation.
The document describes the PMEGXX10BEA and PMEGXX10BEV series of discrete semiconductors, specifically 1 A very low VF MEGA Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are available in ultra-small SOD323 (SC-76) and very small SOT666 plastic surface-mounted packages.
| Forward current (continuous) | 1 A |
|---|---|
| Reverse voltages | 20 V, 30 V, 40 V |
| Package types | SOD323 and SOT666 |
The maximum continuous forward current is 1 A when the junction temperature is below 55 °C.
The rectifiers are available with continuous reverse voltages of 20 V, 30 V, and 40 V.
The maximum junction temperature rating is 150 °C.
