PMEG2010AEB is a 20V, 1A ultra low VF MEGA Schottky barrier rectifier in SOD523 package. It features a forward current of 1.0A, a reverse voltage of 20V, ultra low forward voltage, and an ultra small SMD package. It is suitable for low voltage rectification, high efficiency DC/DC conversion, voltage clamping, inverse-polarity protection, and low power consumption applications.

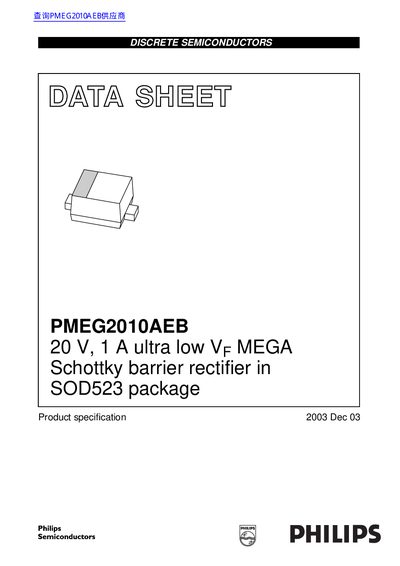

The document is a product specification for the PMEG2010AEB, a Schottky barrier rectifier designed for low voltage rectification, high efficiency DC/DC conversion, and voltage clamping. It features an integrated guard ring for stress protection and is encapsulated in an ultra-small SOD523 (SC-79) plastic SMD package.
The datasheet details the device's features, pinning, applications, and ordering information. It includes comprehensive electrical characteristics such as forward voltage, reverse current, and diode capacitance, along with limiting values and thermal characteristics. Graphical data illustrates the relationship between forward current/voltage and reverse current/voltage.
| Forward current | 1.0 A |
|---|---|
| Reverse voltage | 20 V |
| Package type | SOD523 |
The marking code for the device is L6.
The maximum continuous forward current is 1.0 A when the temperature is below 55 °C.
The device has a maximum continuous reverse voltage rating of 20 V.
The component can be stored between -65 °C and +150 °C.
