This is a product data sheet that introduces the features and characteristics of two Schottky diodes, PMEG3020EH and PMEG3020EJ. These diodes have ultra-low forward voltage and are suitable for low voltage rectification, high efficiency DC-DC conversion, switched-mode power supply, reverse polarity protection, and other applications.

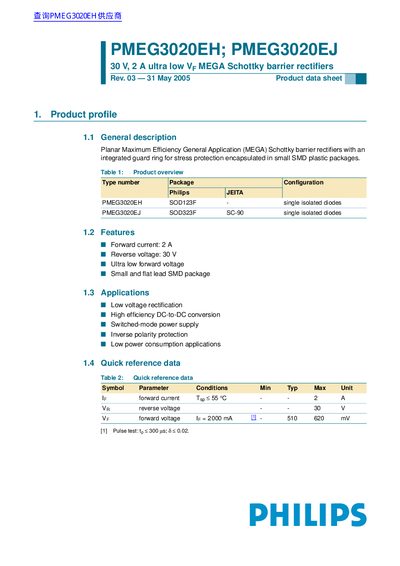

This document is a product datasheet for the Philips PMEG3020EH and PMEG3020EJ 30V, 2A ultra low forward voltage (VF) MEGA Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are encapsulated in small SMD plastic packages.
| Forward current | 2 A |
|---|---|
| Reverse voltage | 30 V |
| Junction temperature | -65 +150 °C |
| Package configuration PMEG3020EH | SOD123F |
| Package configuration PMEG3020EJ | SC-90 |
The maximum forward current is 2 A.
The maximum reverse voltage is 30 V.
The maximum junction temperature is 150 °C.
