PHILIPS PMEG3015EV 30 V 1.5 A ultra low VF MEGA Schottky barrier recti er in SOT666 package handbook

PMEG3015EV is a ultra low VF Schottky rectifier from Philips. It has a maximum forward current of 1.5A and a reverse voltage of 30V. The diode is packaged in a SOT666 plastic package and has applications in low voltage rectification, high efficiency DC-DC conversion, voltage clamping, reverse polarity protection and low power consumption applications.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 43 KB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: 92C81E0EB4FF9DA40F8A53BEEDDA5B00
PDF: PHILIPS PMEG3015EV 30 V 1.5 A ultra low VF MEGA Schottky barrier recti er in SOT666 package handbook PDF

About this manual

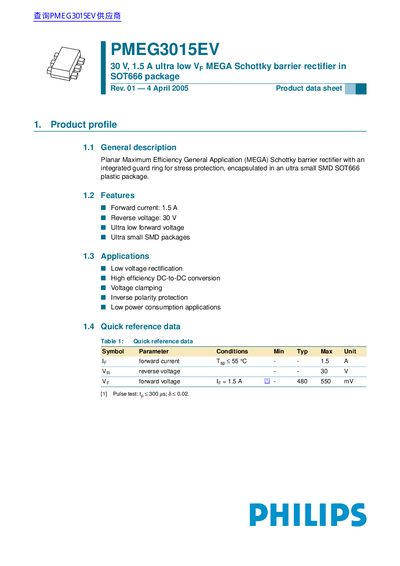

This document is a product datasheet for the Philips PMEG3015EV, a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier. The device features an integrated guard ring for stress protection and is encapsulated in an ultra-small SMD SOT666 plastic package.

What's inside

General description
Features
Applications
Pinning information
Ordering information
Limiting values
Thermal characteristics
Characteristics

Specifications

Forward current	1.5A
Reverse voltage	30 V
Package type	SOT666

Frequently asked questions

What is the maximum forward current rating for this rectifier?

The device has a rated forward current of 1.5 A.

What is the maximum reverse voltage specification?

This rectifier supports a reverse voltage up to 30 V.
