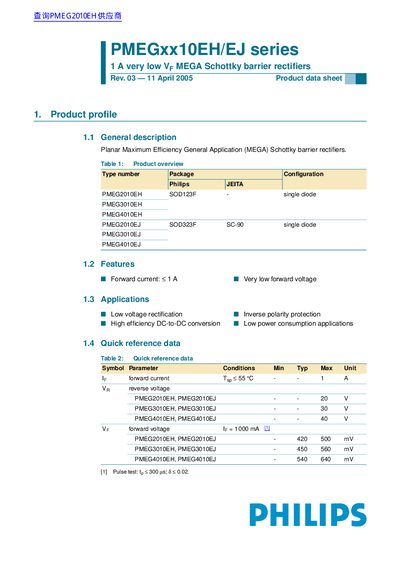

This document is the datasheet of PMEGxx10EH/EJ series 1 A very low VF MEGA Schottky barrier rectifiers
The document describes the Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers in the PMEGxx10EH/EJ series. These devices are designed for applications requiring very low forward voltage and high efficiency, such as DC-to-DC conversion and inverse polarity protection.
Key features include a maximum forward current of 1A and reverse voltages ranging from 20V to 40V depending on the specific type number. The datasheet provides comprehensive technical data including pinning information, limiting values, thermal characteristics, electrical curves, package outlines (SOD123F and SOD323F), soldering guidelines, and packing methods.
| Forward current (IF) | 1 A |
|---|---|
| Reverse voltage (VR) - PMEG2010EH/EJ | 20 V |
| Reverse voltage (VR) - PMEG3010EH/EJ | 30 V |
| Reverse voltage (VR) - PMEG4010EH/EJ | 40 V |
| Junction temperature (Tj) | -65 to +150 °C |
| Ambient temperature range (Tamb) | -65 to +150 °C |
The maximum forward current (IF) for all types in the PMEGxx10EH/EJ series is 1 A.
The maximum forward current is 1 A when the storage temperature is 55°C or lower.
The maximum junction temperature is 150 °C.
