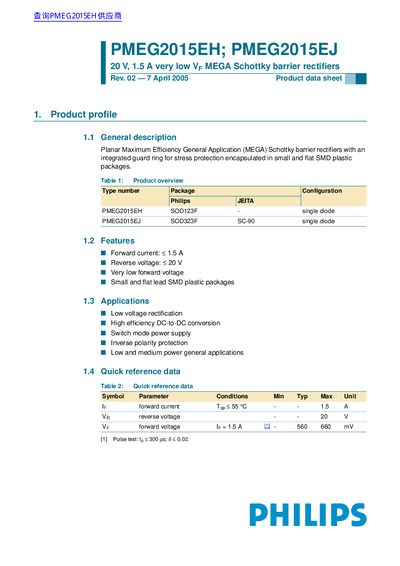

This document describes the features and characteristics of a Schottky barrier rectifier called PMEG2015EH, including forward current, reverse voltage, and forward voltage. The product is suitable for low voltage rectification, high efficiency DC-DC conversion, switch mode power supply, inverse polarity protection, and low to medium power general applications.
The document describes the PMEG2015EH and PMEG2015EJ as Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are encapsulated in small, flat SMD plastic packages (SOD123F and SOD323F). They are designed for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, and inverse polarity protection.
| Forward current | 1.5 A |
|---|---|
| Reverse voltage | 20 V |
| Junction temperature | 150 °C |
| Ambient temperature | -65 +150 °C |
| Package type (PMEG2015EH) | SOD123F |
| Package type (PMEG2015EJ) | SOD323F |
The maximum forward current is 1.5 A when the storage temperature is 55°C or lower.
The maximum reverse voltage is 20 V.
