The product is a PMEG2010EA type Schottky diode with ultra low forward voltage and ultra high switching speed, which can be used for ultra high speed switching, voltage clamping and protection circuits.

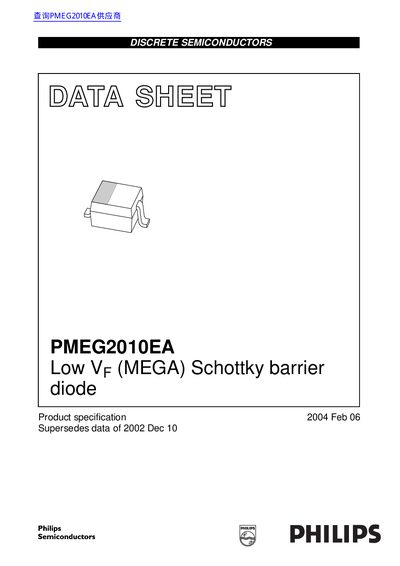

The document describes the PMEG2010EA, a Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode. It features an integrated guard ring for stress protection and is encapsulated in a very small SOD323 (SC-76) surface-mounted plastic package.
| Continuous forward current (If) | 1 A |
|---|---|
| Reverse voltage (Vr) | 20 V |
| Non-repetitive peak forward current (Iesm) | 5 A |
| Storage temperature range | -65 +150 °C |
| Junction temperature (Tj) | 125 °C |
| Package type | SOD323 |
The device has a maximum continuous reverse voltage of 20 V.
It supports a continuous forward current of up to 1 A.
The junction temperature must not exceed 125 °C.
